Description

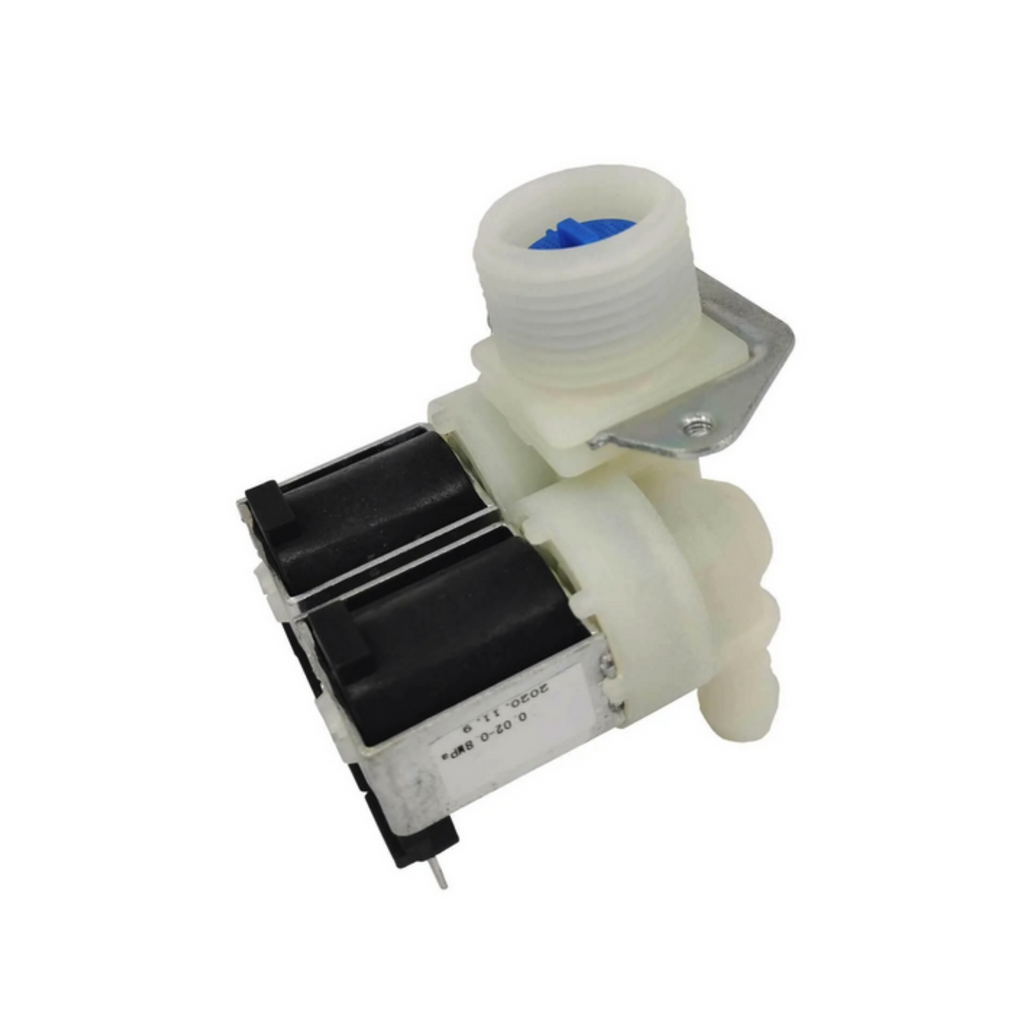

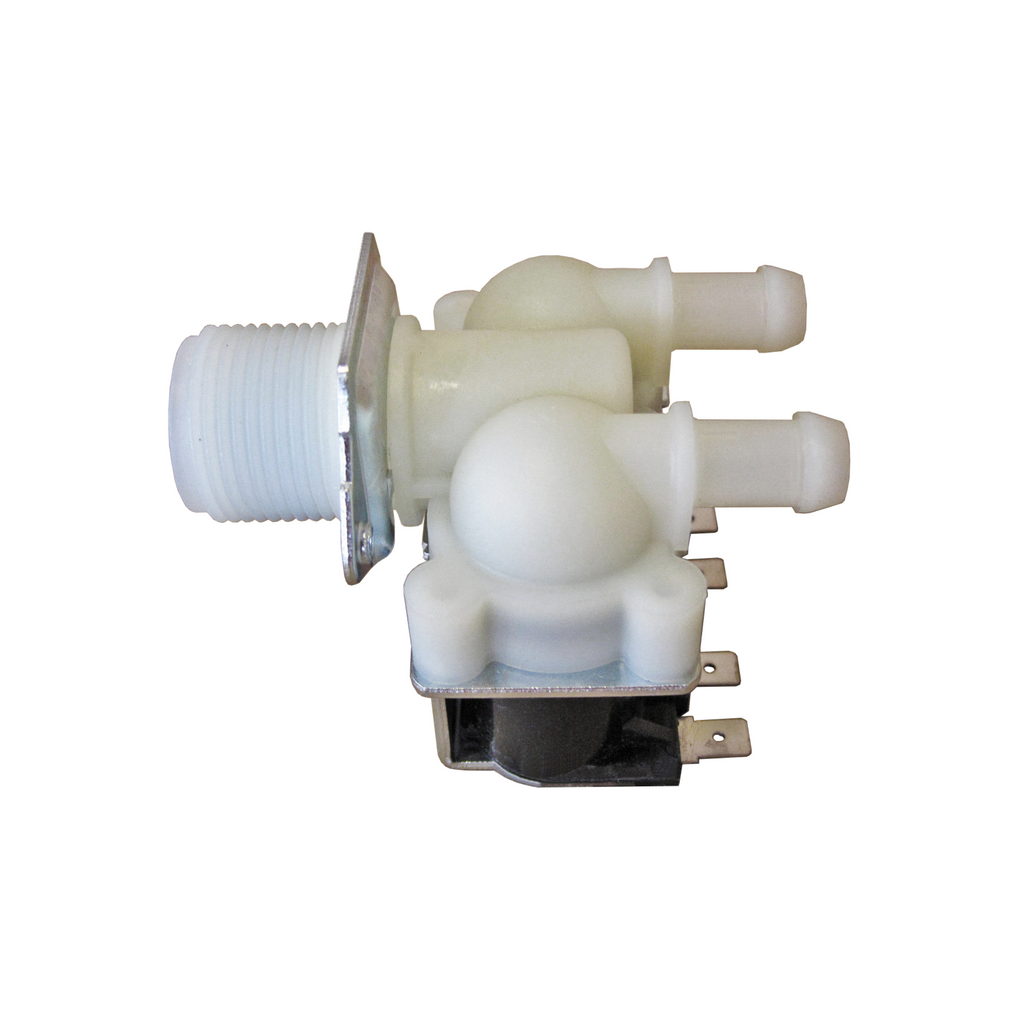

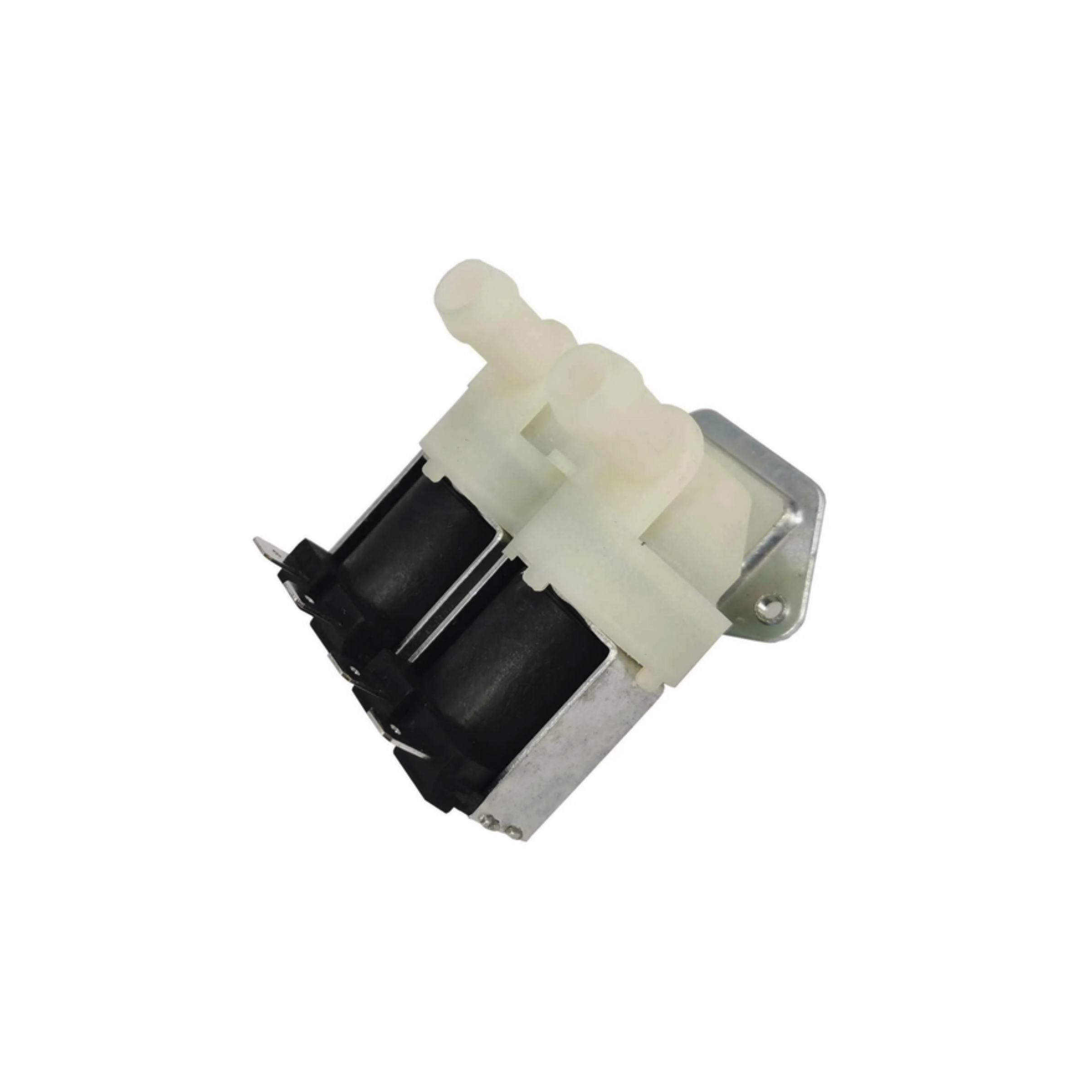

5220FR1251E Pacific Gorenje, Hoover, Samsung, LG Washing Machine Duel Inlet Valve
5220FR1251E Pacific Gorenje, Hoover, Samsung, LG Washing Machine Duel Inlet Valve - W001, 5220FR2067B
-
Part Number: 5220FR1251E
-
Alternative / Equivalent Parts:
W001, 5220FR2067B, 5221EN1005B, G530240, G358495,
WV024A, WV024B, GP003, 75866001, W103, DC62-00024F -

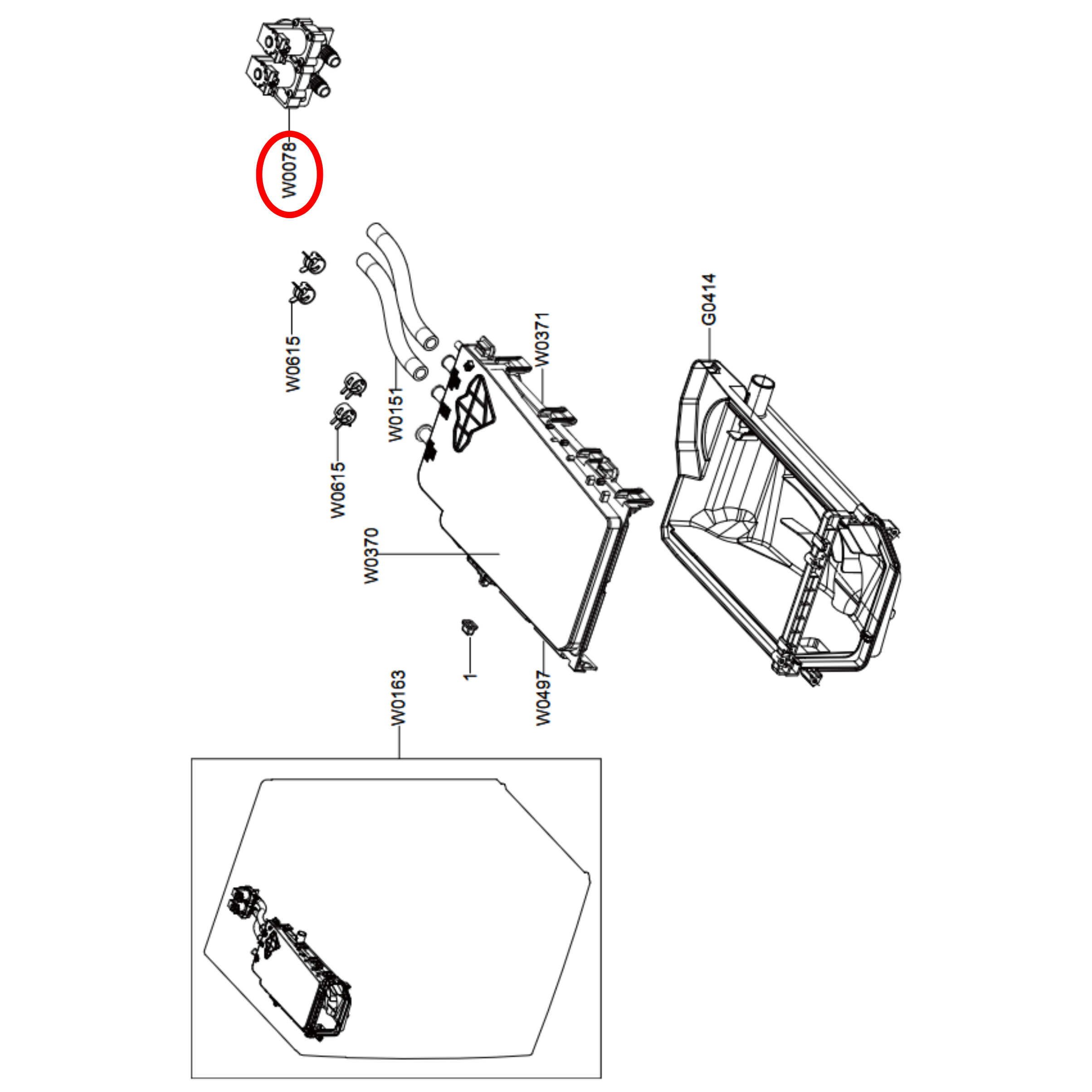

Diagram Reference: W0078
-
Type: Dual Water Inlet Solenoid Valve
-
Appliance Type: Front Load Washing Machine
Technical Specifications
-
Inlet: 3/4" BSP standard tap thread
-
Outlet: 10mm hose connection
-
Voltage: 240VAC
-
Flow Rate: 15 L/min
-
Configuration: Dual inlet valve
Models this part suits:
WW75H5240EW, WD10020D (F1268QDP.ABWREAP), WD-1015FB (WD-10150FB.AOWREAP), WD-10160TP (WD-10160TP.AOWREAP), WD-10160TP (WD-10160TP.AOWRRAN), WD-10160TUP (WD-10160TUP.AOWPBWT), WD-1018C (WD-10160TP.AOWREAP), WD-10230TP (WD-10230TP.AOWREAP), WD-1023C (WD-10230TP.AOWREAP), WD-1025FB (WD-10151FB.AOWREAP), WD10490C (WD-10481TP.ABWREAP), WD-10490TP (WD-10490TP.AOWREAP), WD-10490TP (WD-10490TP.AOWRRAN), WD-1049C (WD-10490TP.AOWREAP), WD-1049C (WD-10490TP.AOWRRAN), WD-1050FH (WD-1050FH.OWREAP), WD-1074FHB (WD-1074FHB.AOWREAP), WD11020D1 (WD-11391TDK.ABWREAP), WD11020D (WD-11390TDK.ABWREAP), WD1200D (F12C3QDP.ABWREAP), WD1200D (FH2C3QDP.ABWREAP), WD12020D (F1222TD.ABWREAP), WD12021D6 (F12B8QD1.ABWREAP), WD1207NCW (F2J6QNP0W.ABWREAP), WD-1223FB (WD-12230FB.AOWREAP), WD-1236TD (WD-12362TD.AOWREAP), WD-12380TBP (WD-12380TBP.AOWRRAN), WD-1238C (WD-12380TBP.AOWREAP), WD-1253FH (WD-1253FH.OWREAP), WD12580D6 (F1255FD.ABWREAP), WD12590D6 (F1255FD.ABWREAP), WD12590D6 (FH255FD.ABWREAP), WD12595D6 (F1255FD7.ASSREAP), WD12595D6 (FH255FD7.ASSREAP), WD-1274FHB (WD-1274FHB.AOWREAP), WD13020D1 (F1322TD1.ABWREAP), WD13020D (F1322TD.ABWREAP), WD14022D6 (F1496TD3.ABWREAP), WD14023D6 (F14A8TD.ABWREAP), WD14024D6 (F14A8GD.ABWREAP), WD14030D6 (F1480FD.ABWREAP), WD14030D (F1403FD3.ABWREAP), WD14030D (F1403FD.ABWREAP), WD14039D6 (F1480FD9.ACRREAP), WD14039D (F1403FD39.ACRREAP), WD14039D (F1403FD9.ACRREAP), WD14060D6 (F1443KD.ABWREAP), WD14070D6 (F1495KD.ABWREAP), WD14130D6 (F14A8FD.ABWREAP), WD14135D6 (F14A8FD7.AESREAP), WD-1460FHD (WD-1460FHD.AOWREAP), WD-1470FD (WD-14220FD.AOWREAP), WD1475NCW (F4J6QNP1W.ABWREAP), WD-1610FD (WD-16100FD.AOWREAP), F1495BD (F1495BD.ABWQEDG), F14A8FD (F14A8FD.ABWQESW), F14A8TD (F14A8TDP.ABWPCOM), WD-80130F (WD-80130F.AOWPEIN), WD-80130TUP (WD-80130TUP.AOWRRAN), WD-8013C (WD-80130TP.AOWREAP), WD-8013F (WD-80130F.AOWREAP), WD-8015C (WD-80130TUP.AOWREAP), WD-8016C (WD-80160TUP.AOWREAP), WD-8016F (WD-80160F.AOWREAP), WD-8023FB (WD-80230FB.AOWREAP), WD-8026C (WD-80260TP.AOWREAP), WD-8030W (WD-8030W.OWREAP), WD80490C (WD-80490TP.ABWREAP), WD-8050FH (WD-8050FH.OWREAP), WD-8074FHB (WD-8074FHB.AOWREAP), WD-F14427D (F14A8FD7.AESPEPN), and possibly more.
