Description

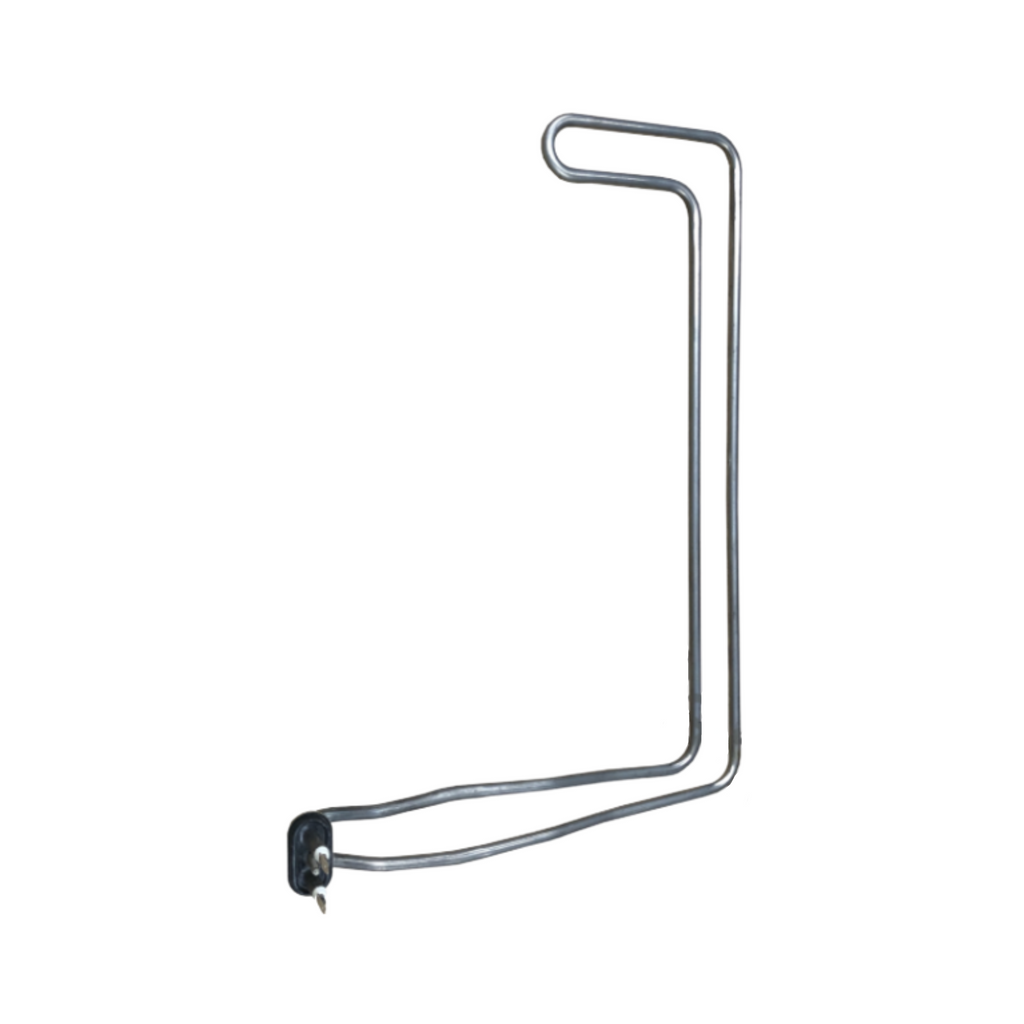

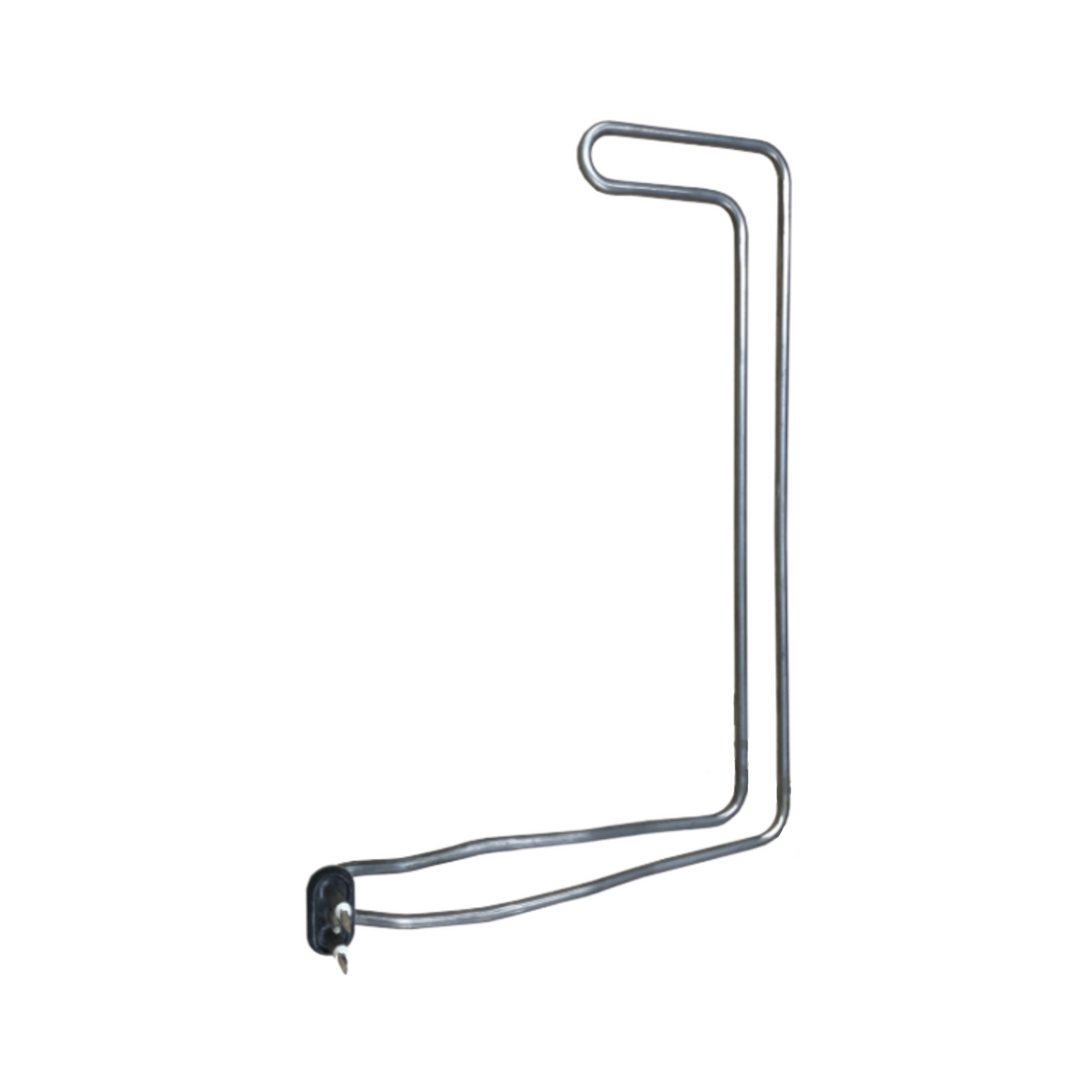

Replacement dishwasher heating element for Smeg, part number 806890373. May also be found as 806890358.
806890373 replaces the earlier part number 806890358.
Heating element, 2000Watt 240Volt. This part is often responsible for the dishwasher tripping the earth leakage circuit breaker in the meter board. Terminals 25mm apart on an bracket 50mm X 27mm with a central mounting bolt. Arm length from center of terminals to far side is 310mm. Arm length of long arm furthest from the terminals is 450mm. Short arm is 150mm. Arm of element closest to the terminals has slight bends near the terminals. Fitted with 6.4mm spade terminals.
Fits these models
GVI682, GVI692 & Smeg LS19, LS21X, LS21X.1, LS21XS, OP43, OP54IX, PL50AX, PL620X, PL622X, PL623X, PL660EB, PL660X-EB, PL670X, PL672X-EB, ST971, ST974, STE972, STE974, STE975, SA620X-EB, SA625X, SA627X-W, SA628WH, SA628X, SA660EB, SA660X, SA660X-EB, SA662X-EB, SA670X1, SA670NE-EB, SA672XNE-EB, SA670X, SA680X, SA972, SA974, SA975, ST660, ST660E, ST662E, ST5562, ST690 & Omega DW2000X, DW2003X
Check your appliance model number against the list above before ordering, as manufacturers often use several part variations across a range.
