Description
A/458/72 ILVE Oven Bottom Element 1635W
A/458/72 ILVE Oven Bottom Heating Element 1635W

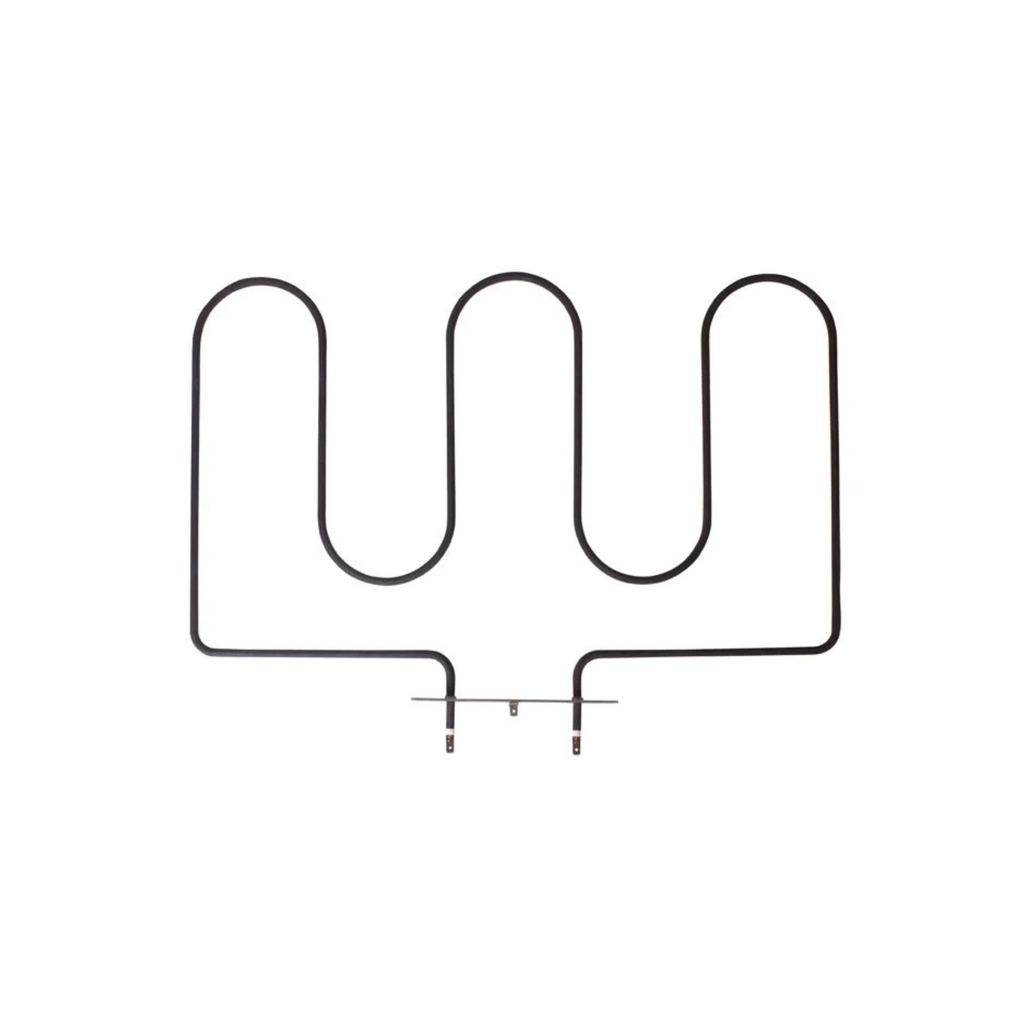

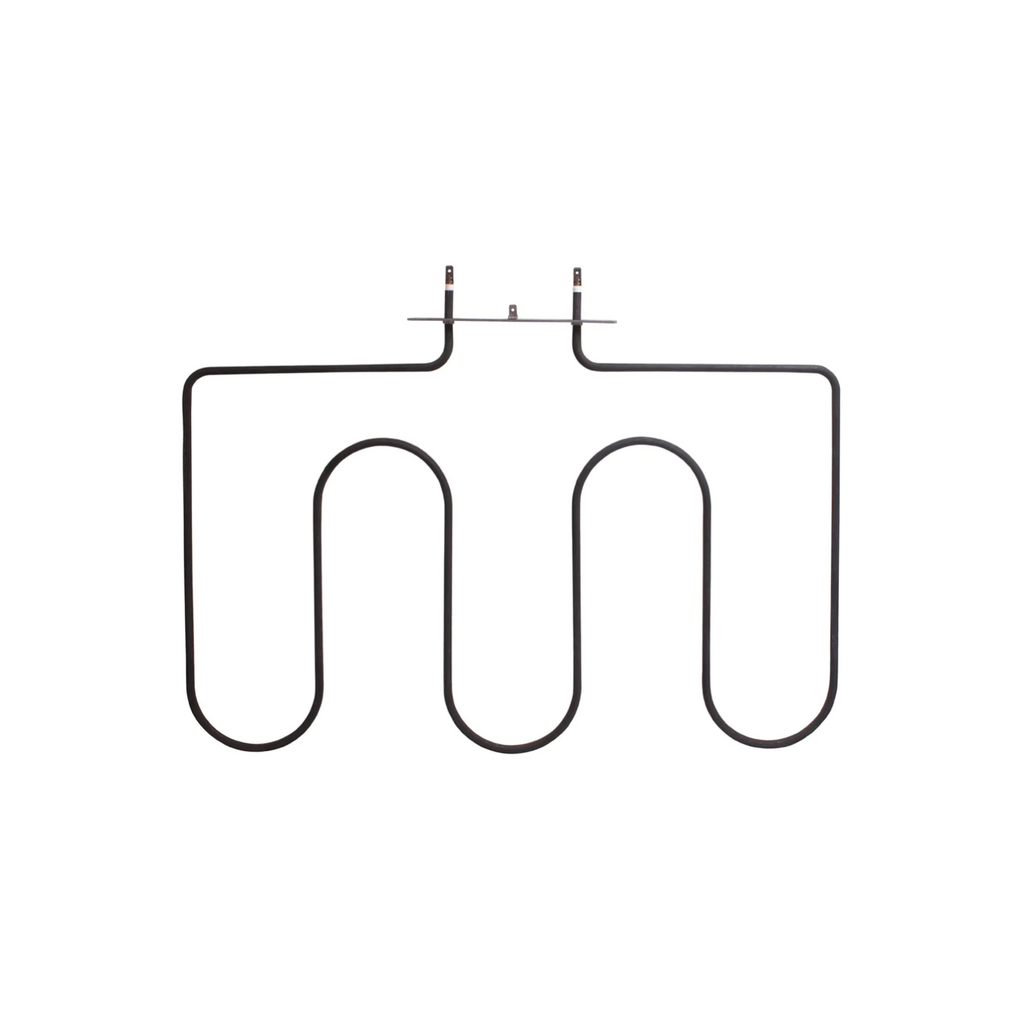

The A/458/72 ILVE oven bottom element is a replacement 1635W lower bake heating element designed for selected ILVE 800mm and 900mm ovens and upright cookers.
Product Specifications
- Primary Part Number: A/458/72
- Alternate Part Number: SE293
- Alternate Part Number: GLO32-03
- Part Type: Oven Bottom Heating Element
- Function: Lower Bake Element
- Power Rating: 1635W
- Application: Selected ILVE 800mm and 900mm ovens
- Diagram Position: Number 8
Diagram Information

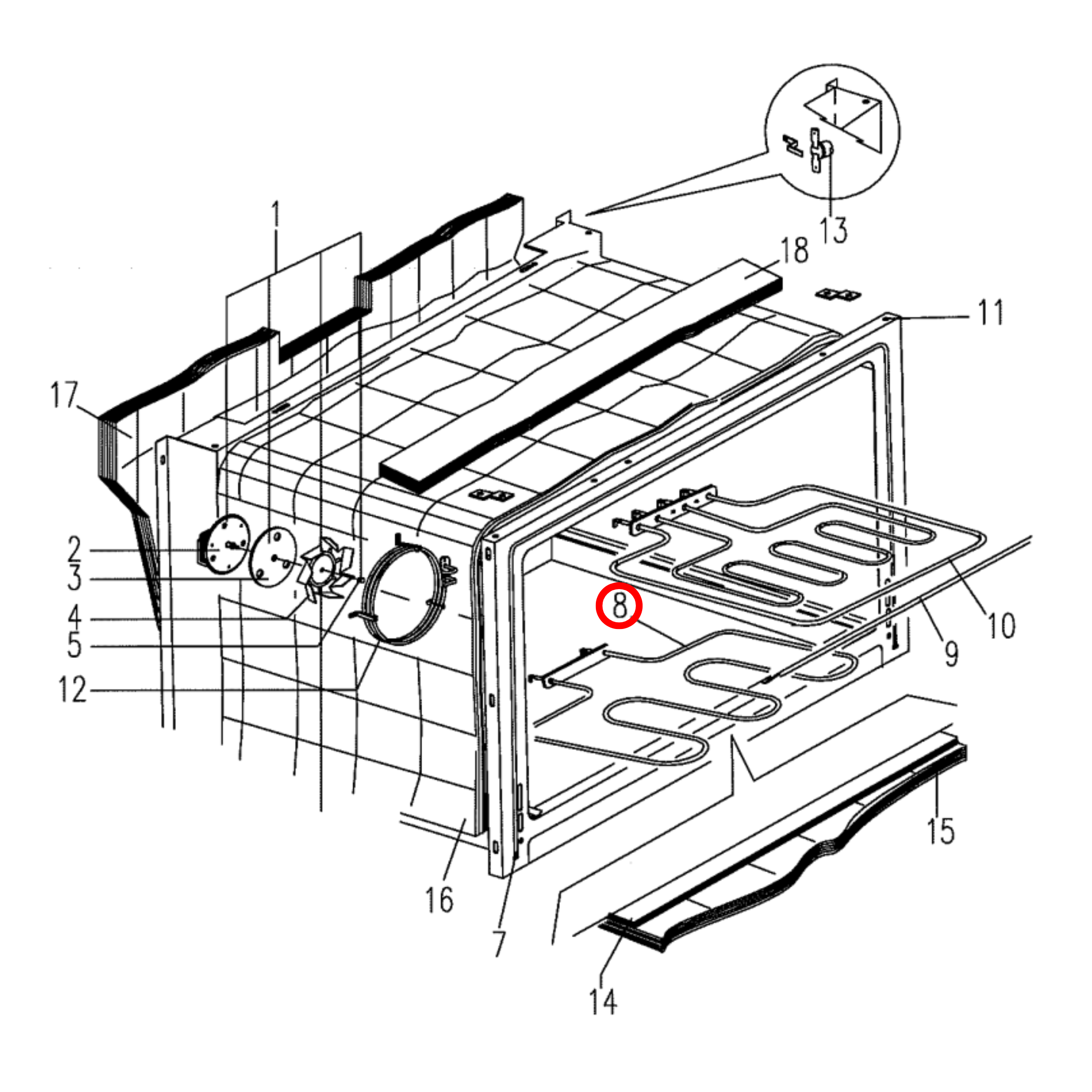

The A/458/72 bottom heating element is shown as number 8 on the exploded parts diagram for ILVE model P90BMP.
Please note that the oven contains different heating elements for different positions:
- Bottom Heating Element – Diagram No. 8: A/458/72
- Upper Heating Element – Diagram No. 10: A/458/38
- Fan Heating Element – Diagram No. 12: A/458/34
Please confirm which heating element has failed before ordering.
Compatible ILVE Oven Models
This bottom oven element suits selected ILVE ovens and cookers including:
800TMP, 700CMP, 700WMP, 800LMP, 800WMP, 900WMP, 900LMP, 900CMP, 900NMP, 948SSXMP, 948SSTCMP, 948NMP, JC806MP, JC80MP, JC90MP, JC906MP, M120FMP, MT120FMP, MT150FMP, M150FMP, M90FMP, MT90FMP, PE90WMP, 948SXMP, P90FWMP/I, PLE80MP, 864PCM/1, 800TMP/1, JC806WMP/1, P90MPNGS, 800LMP/01, T90WMP, PWI90MP and possibly more.
