Description

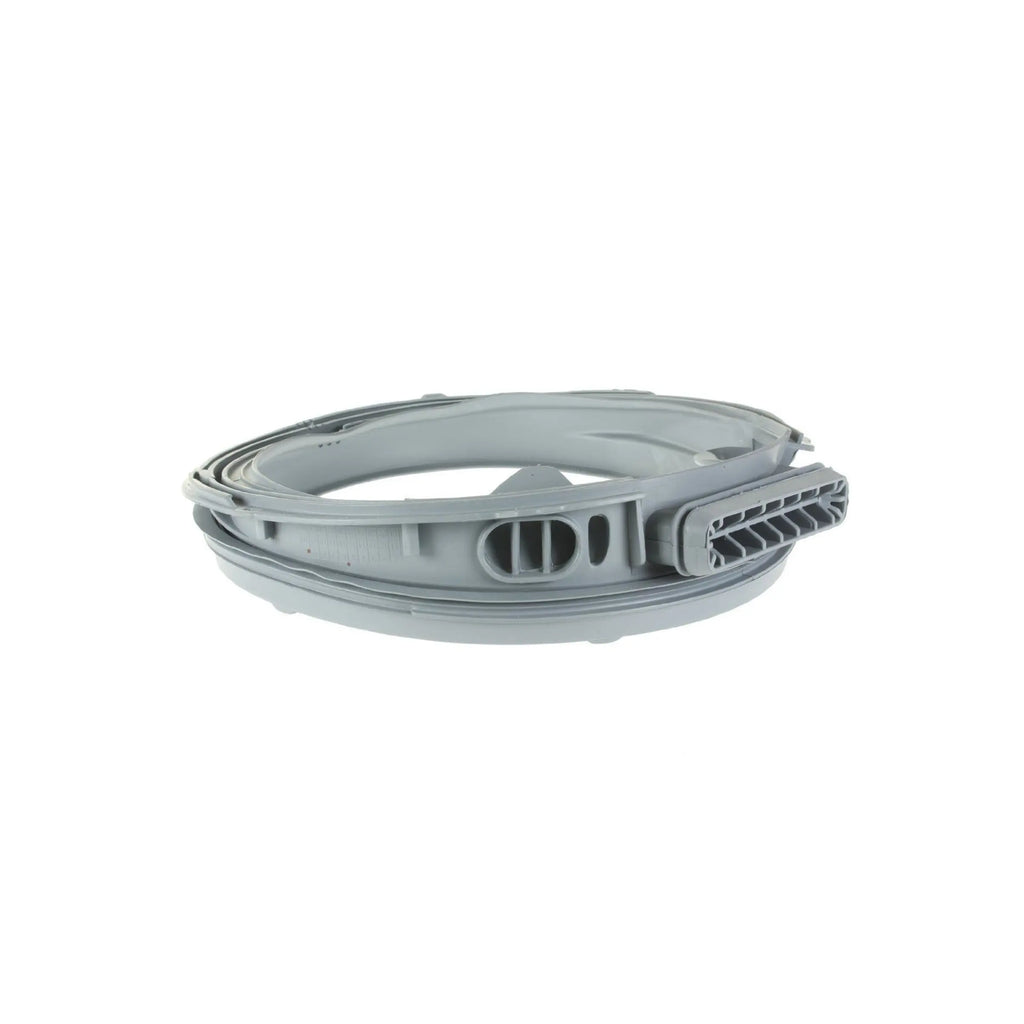

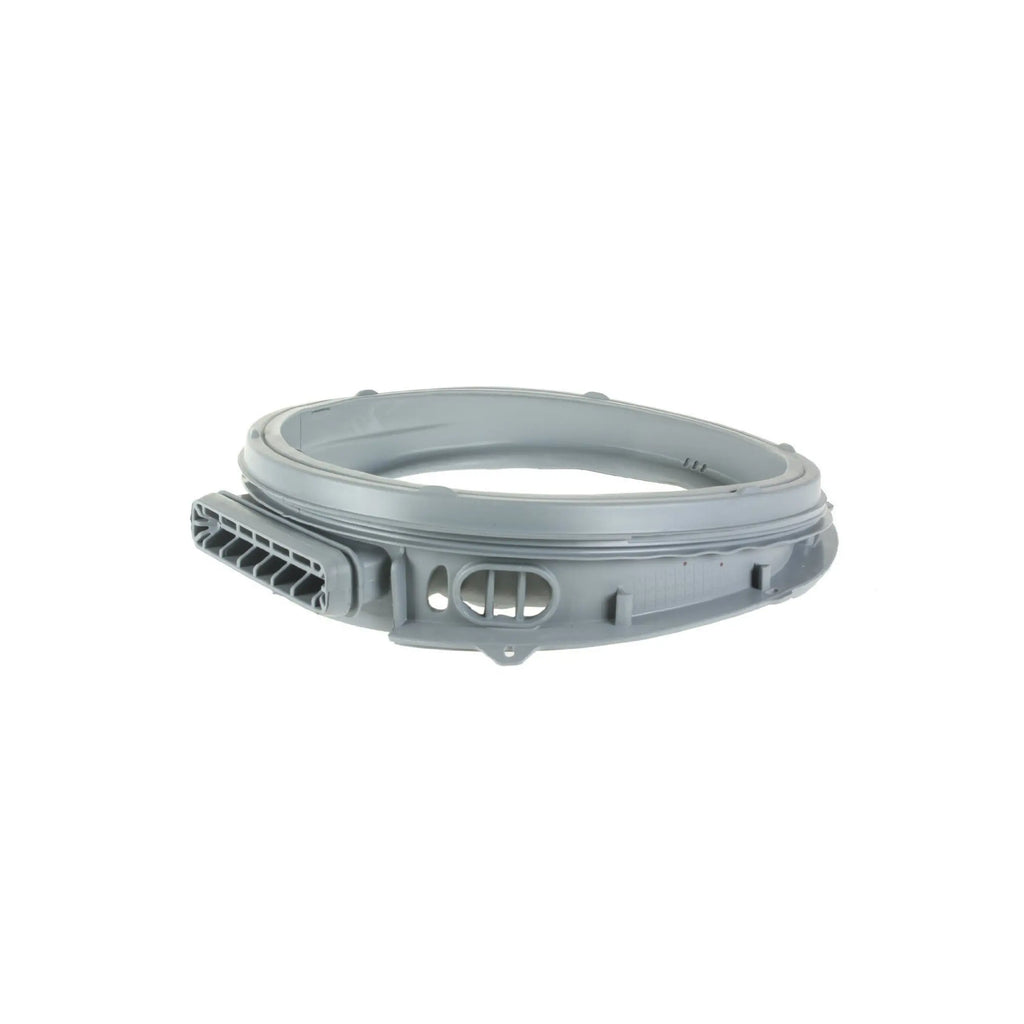

MDS62012603 LG Front Load Washing Machine Door Seal / Gasket
The MDS62012603 LG washing machine door seal is a replacement rubber door gasket designed for selected LG front load washing machines.
Also known as M1476183 and 1711866, this door boot seal forms a watertight barrier between the washing machine drum opening and the door, helping prevent water leaks during wash, rinse and spin cycles.
A
Common Fault Symptoms
- Water leaking from the washing machine door
- Water leaking from the front of the washer
- Torn or split rubber door seal
- Cracked or deteriorated door gasket
- Mould-damaged rubber seal
- Water collecting around the door opening
- Clothes becoming trapped in a damaged gasket
- Door seal loose or distorted
- Leakage during wash or rinse cycles
Product Specifications
- Primary Part Number: MDS62012603
- Superseded Part Number: M1476183
- Superseded Part Number: 1711866
- Part Type: Washing Machine Door Seal / Gasket
- Also Known As: Door Boot, Door Bellows, Rubber Door Gasket
- Application: Front Load Washing Machine
- Diagram Position: K510
- Suitable Brand: LG
Supersedes Part Numbers
The MDS62012603 LG washing machine door seal supersedes:
- M1476183
- 1711866
Customers searching for either of these older part numbers can use MDS62012603 as the replacement where compatibility is confirmed by the appliance model.
Diagram Information
The MDS62012603 LG door gasket is shown as position K510 on the exploded parts diagram for model WD14070D6.
Compatible LG Washing Machine Models
This door seal suits selected LG front load washing machines including:
F1443KD, F1443KDS, F1495BD, F1495BDA, F1495BDS, F1495BDS7, F1495BDSA, WD14070SD6, WD14060SD6, WD14060SD, WD14070D, WD14070D6, WD14071SD6, WD14075D6, WD1410SBW, WD1411SBW and possibly more.
