Description

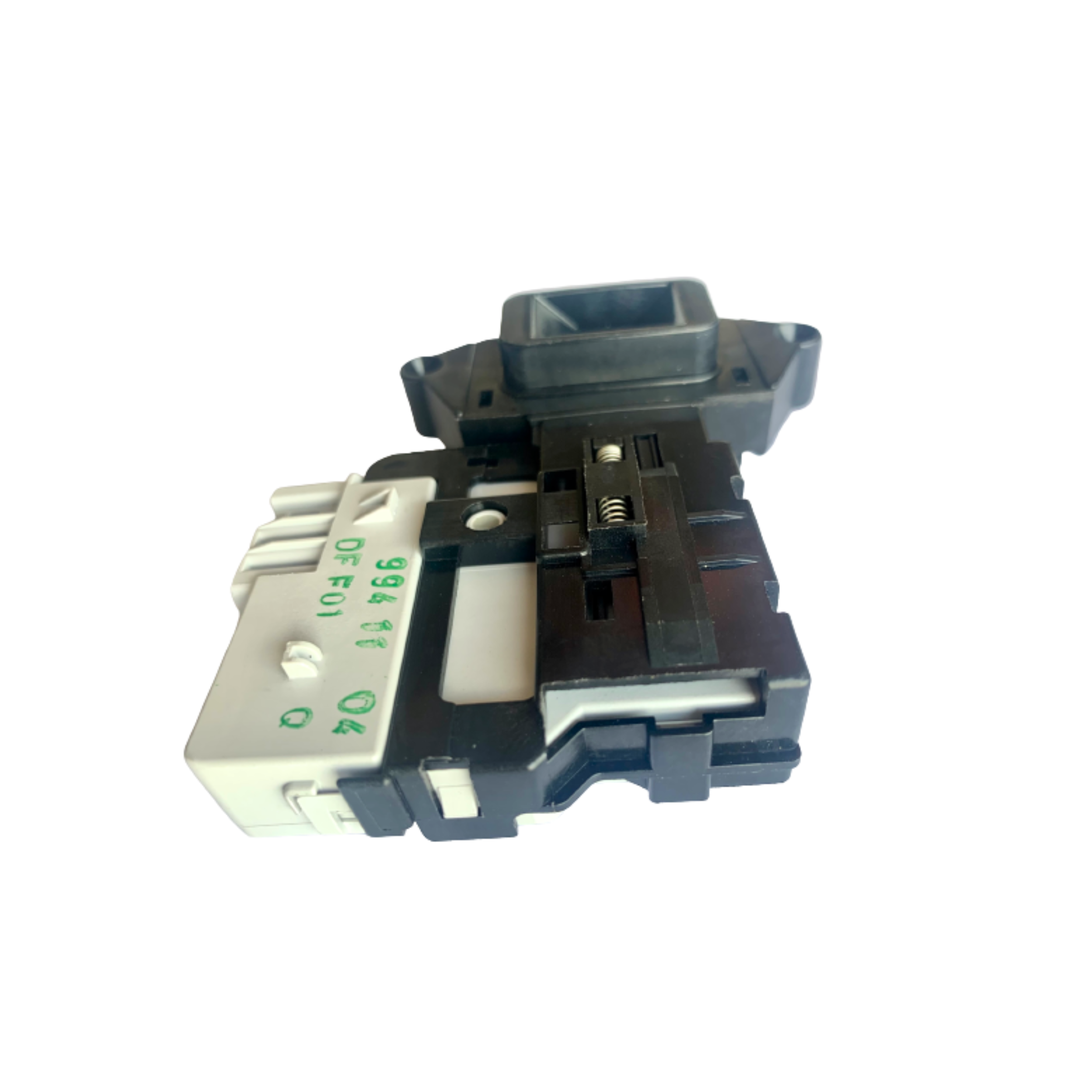

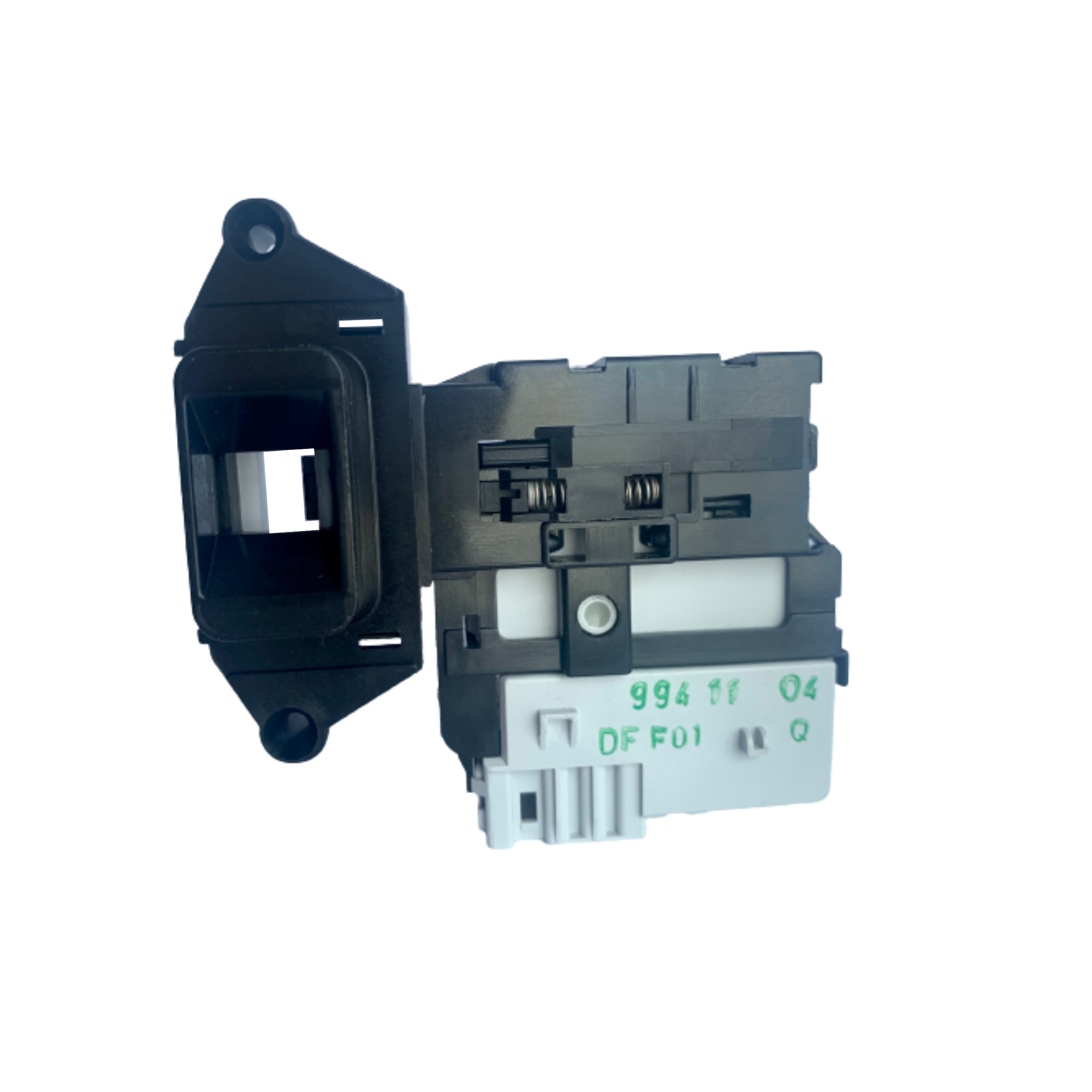

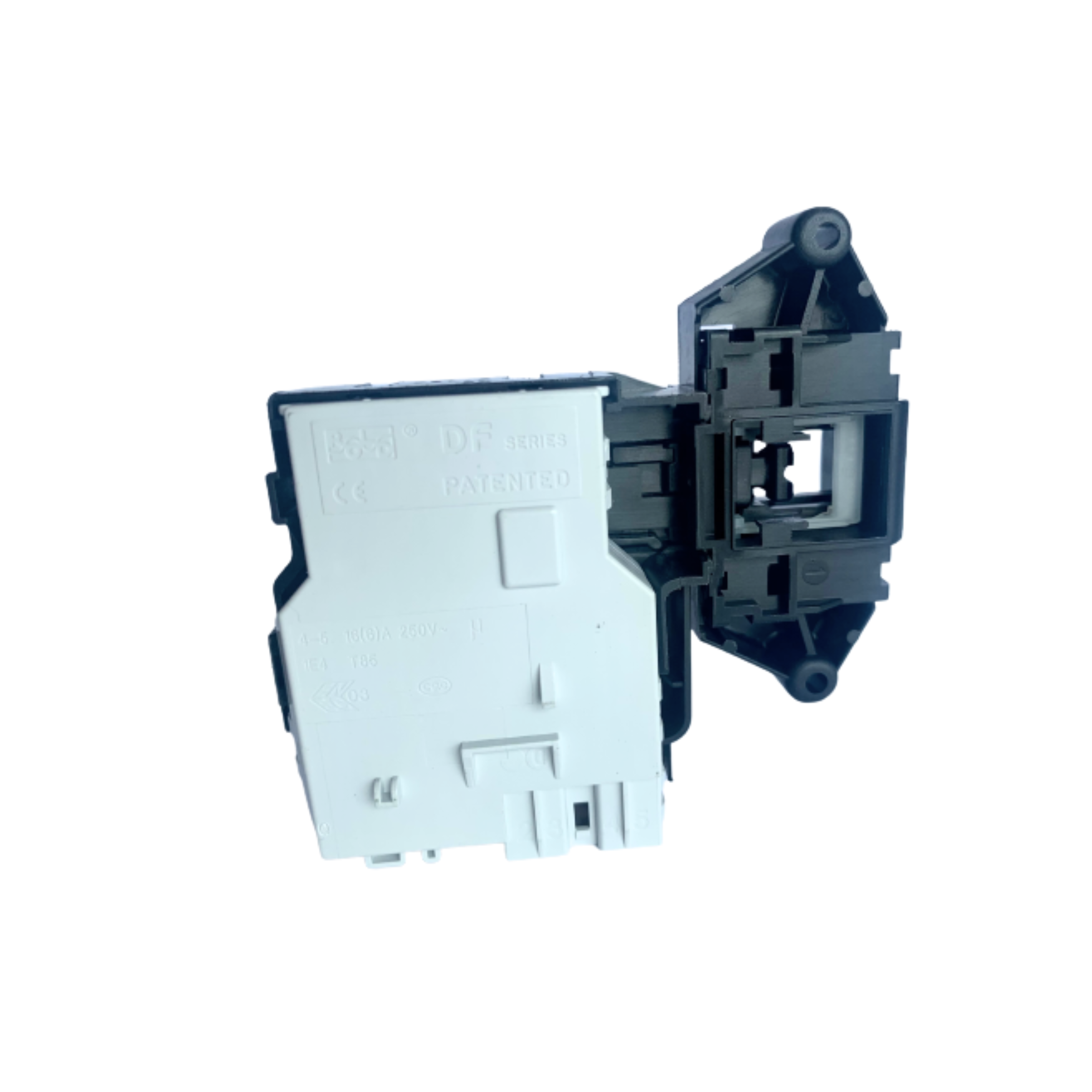

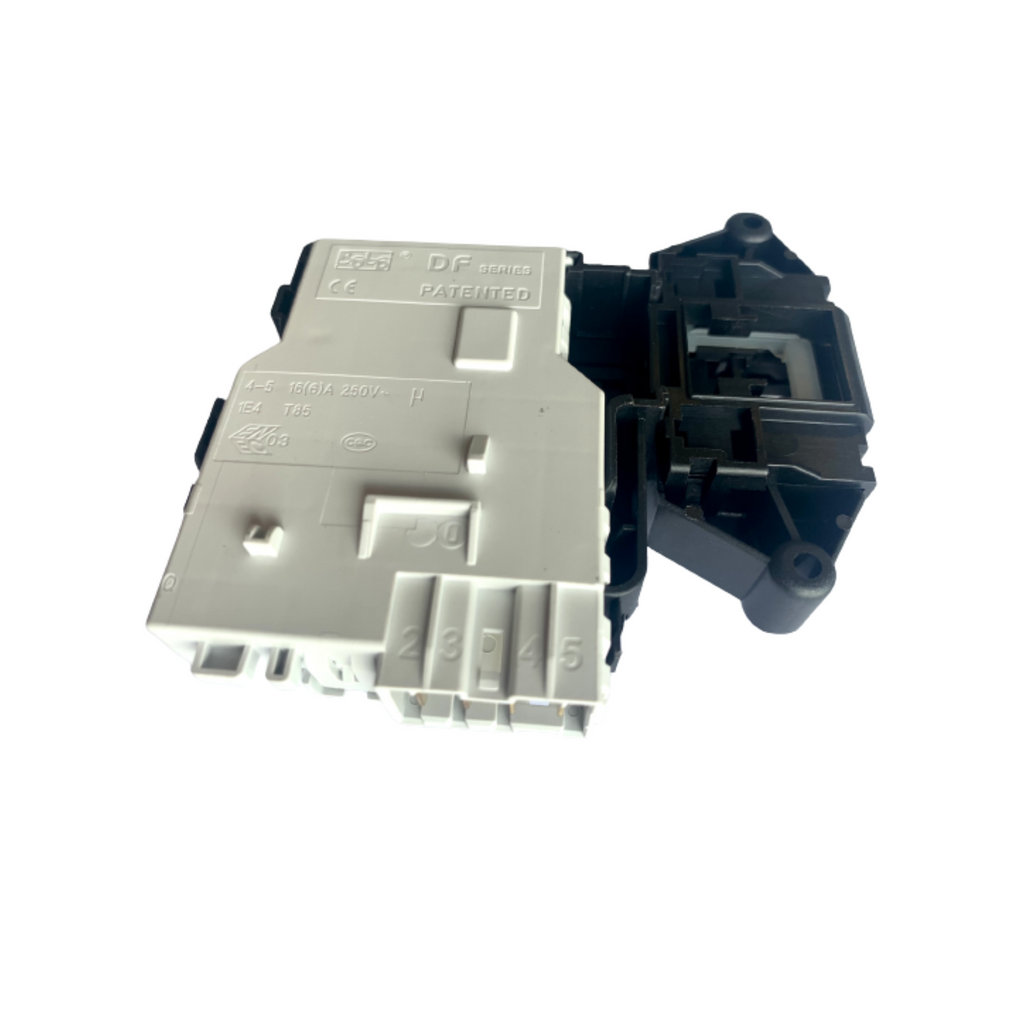

EBF49827803 LG Font Load Washing Machine Door Lock
EBF49827803 LG Font Load Washing Machine Door Lock 4 Pins restores proper door-latching and safety lock function on compatible LG front loaders.
🔧 Specifications
-
Part Number: EBF49827803
-
Type: 4-pin door interlock switch
-
Function: Detects door closure & activates electronic lock
-
Replacement for: LG102
📌 Models this part suits
This EBF49827803 LG Front Load Washing Machine Door Lock 4 Pins – LG102 suits the following models:
WD-1019BD (WD-10190BD.ABWREAP),
WD-1219BD (WD-12195BD.ATTREAP),
WD-1227RD (WD-12270RD.ABWREAP),
WD-1255RD (WD-12550RD.ATWREAP),
WD-1255RD (WD-12550RD.ATWRRAN),
WD-1256RD (WD-12556RD.ABPREAP),
WD12570FD (F1236RDS.ATWREAP),
WD12576FD (F1236RDS6.ABPREAP),
WD13050SD (F1305FDM.ASTREAP),
WD14023D6 (F14A8TD.ABWREAP),
WD14024D6 (F14A8GD.ABWREAP),
WD14030D6 (F1480FD.ABWREAP),
WD14030D (F1403FD3.ABWREAP),
WD14030D (F1403FD.ABWREAP),
WD14030FD6 (F1480RDS.ABWREAP),
WD14030FD (F1403RDS3.ABWREAP),
WD14030RD6 (F1480RD.ABWREAP),
WD14039D6 (F1480FD9.ACRREAP),
WD14039D (F1403FD39.ACRREAP),
WD14060D6 (F1443KD.ABWREAP),
WD14060SD6 (F1443KDS7.ASSREAP),
WD14060SD6 (WD14060SD6),
WD14070D6 (F1495KD.ABWREAP),
WD14070SD6 (F1495KDS7.AESREAP),
WD14071SD6 (F1495KDS.ABWREAP),
WD14075D6 (F1495KDS7.AESREAP),
WD1408NPW (FH4A8GDNK2.ABWREAP),
WD1409HPW (FH4A8FDHK2N.ABWREAP),
WD1409NPE (FH4A8FDNK6.AESREAP),
WD1409NPW (FH4A8FDNK2.ABWREAP),
WD14130D6 (F14A8FD.ABWREAP),
WD14130FD6 (F14A8RDS.ABWREAP),
WD14130RD6 (F14A8RD.ABWREAP),
WD14135D6 (F14A8FD7.AESREAP),
WD1475NPW (FH4A8TDNP2.ABWREAP),
WD-F14427D (F14A8FD7.AESPEPN),
F1069FD2 (F1069FD2.ABWREAP),
F1069FD3 (F1069FD3.ABWREAP),
F1069FD4 (F1069FD4.ABWREAP),
F1069FD (F1069FD.ABWREAP),
F1495BD (F1495BD.ABWQEDG),
F14A8FD (F14A8FD.ABWQESW),
F14A8RDS (F14A8RDS.ABWQESW),
F14A8TD (F14A8TDP.ABWPCOM),
F14A8TDS (F14A8TDS.ABWQESW),
F14A8TDS (F14A8TDSP.ABWQESW),
and possibly more.
