Description

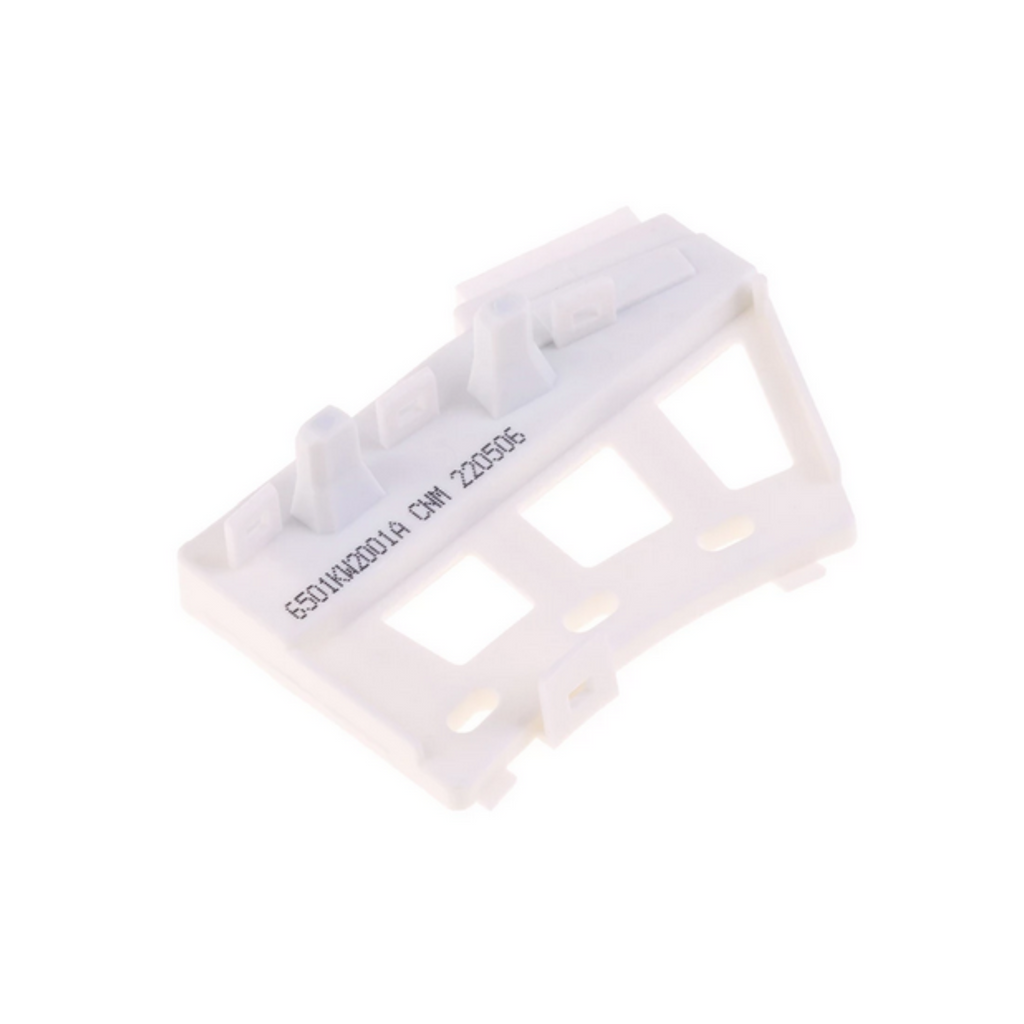

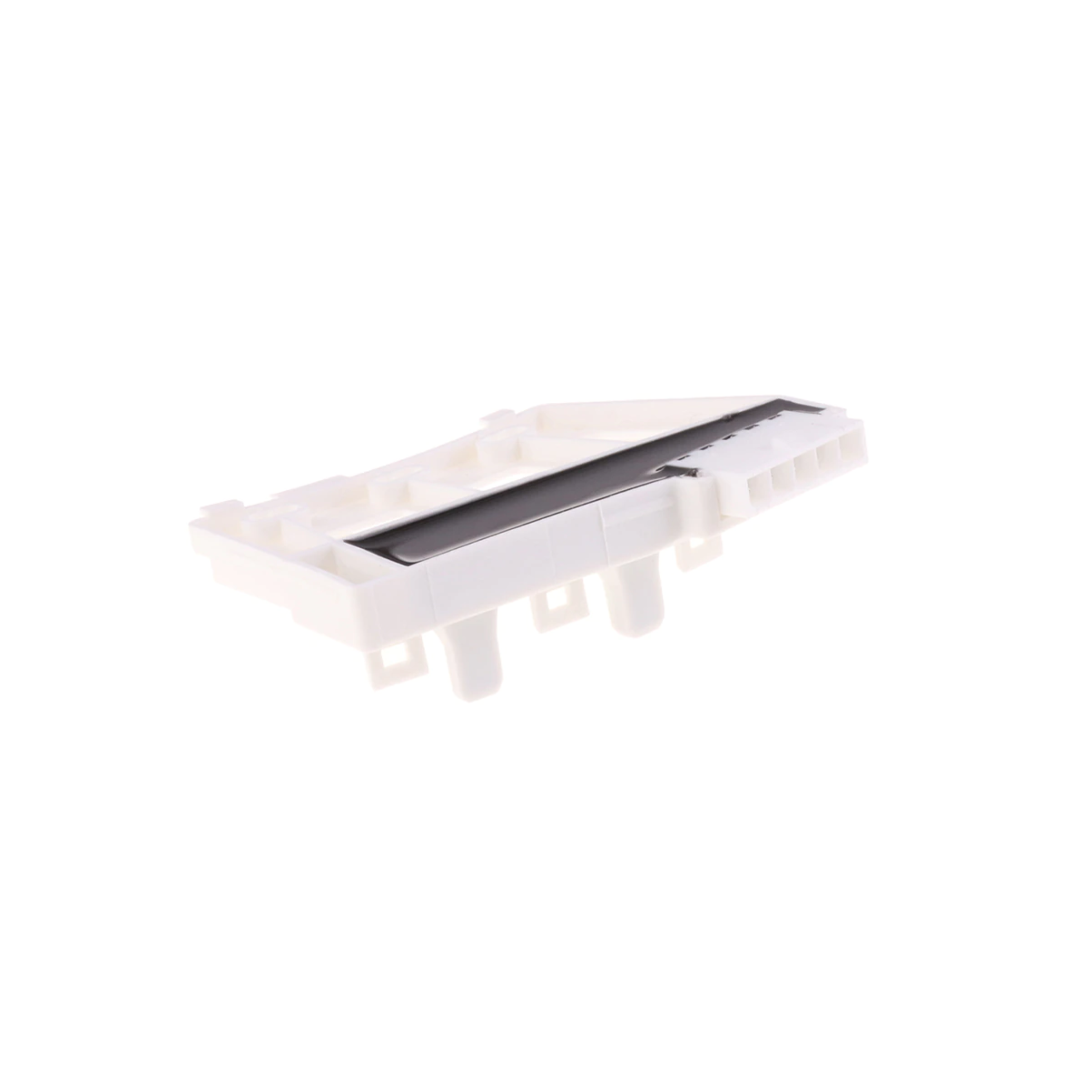

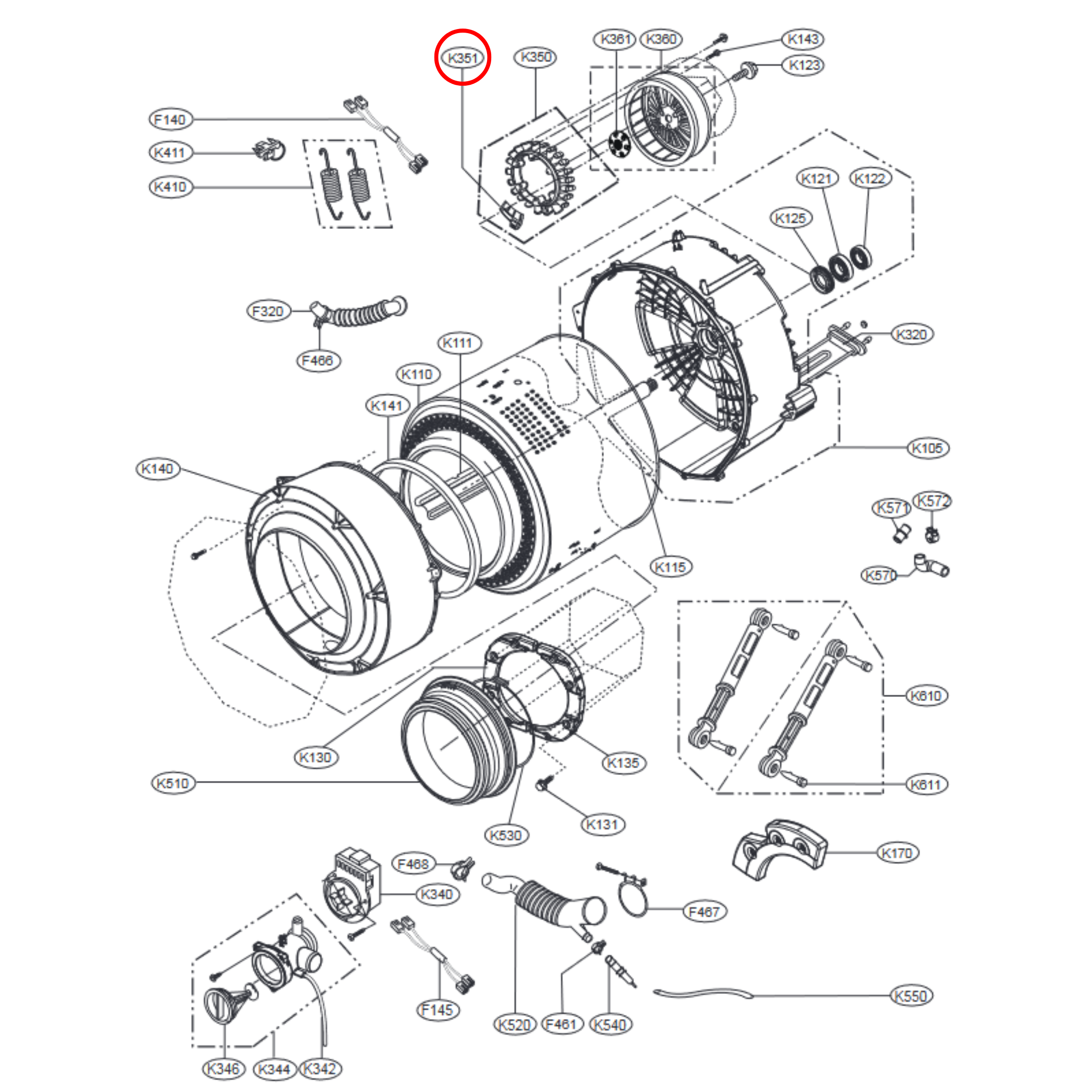

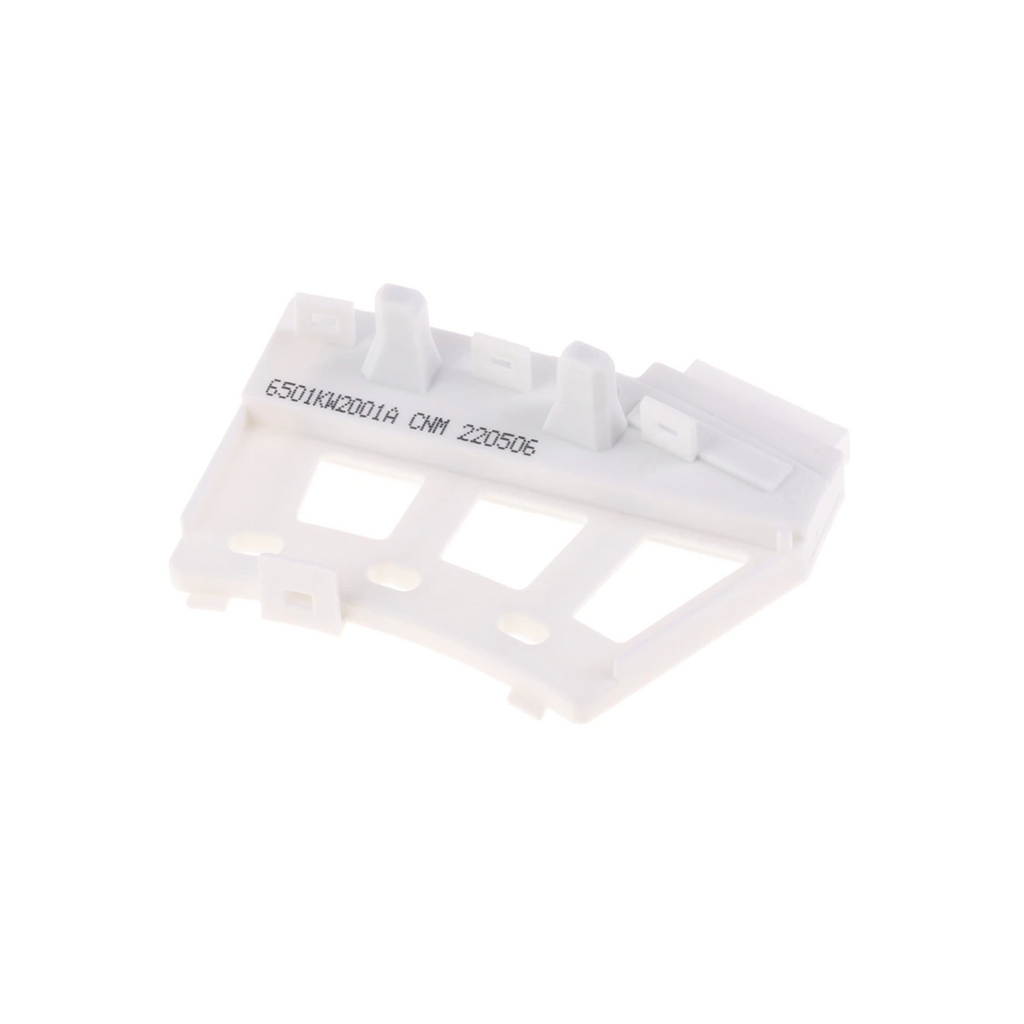

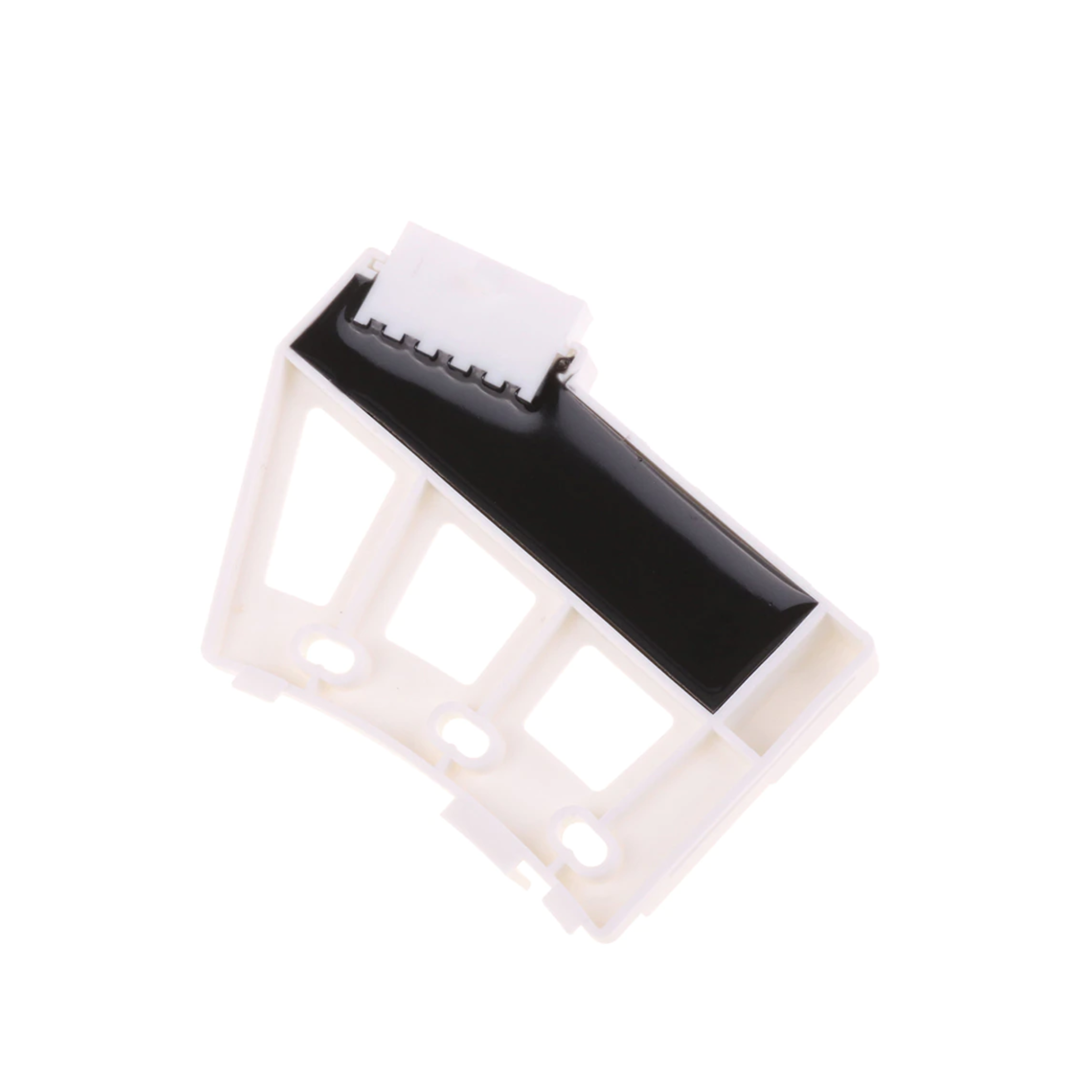

The 6501KW2001A LG Hall Sensor (also known as LG117) is a key component that detects the motor's position in your front load LG washing machine. This part is number K351 on the diagram (2nd last photo), from model WD14022D6.
This high quality replacement ensures smooth operation and proper motor control, helping prevent cycle errors and ensuring consistent performance.
Compatible Models:
F Series:
F1495BD, F14A8FD, F14A8RDS, F14A8TDS, FR2922NCZB
WD Series:
WD-1236TD, WD-1247RD, WD-1248RD, WD-1290RD, WD-1412RD, WD-1435RD, WD-1438RD, WD-1457RD, WD-1460FHD, WD-1470FD, WD-1480RD, WD-1481RD, WD-1485RD, WD-1488RD,
WD-F14427D, WD11020D, WD11020D1, WD12020D, WD12021D6, WD12490FD, WD12495FD, WD13020D, WD13020D1,
WD14022D6, WD14023D6, WD14024D6, WD1402CRD6, WD14030D, WD14030D6, WD14030FD, WD14030FD6, WD14030RD, WD14030RD6,
WD14039D, WD14039D6, WD14060D6, WD14060SD6, WD14070D6, WD14070SD6, WD14071SD6, WD14130D6, WD14130FD6, WD14130RD6, WD14135D6,
WD14700RD, WD14750SD, WD14756SD, WD14800RD
WT Series:
WT-R107, WT-R801, WT-R807, WT-R852, WT-R854, WT-R857, WT-R8571, WT-R902
If you need help confirming compatibility, feel free to email us at sales@fastspares.com.au
