Description
Part Number: 430144
Supersedes: 420324P, FP001, SM00-246NR, SD200, FP420324P, FP426956P, FP426956, 426956, 426956P, FP426719P, 426719P, 1030207WS, SM00216N, SM00-346N
Also known as: FP003, FP004, FP005

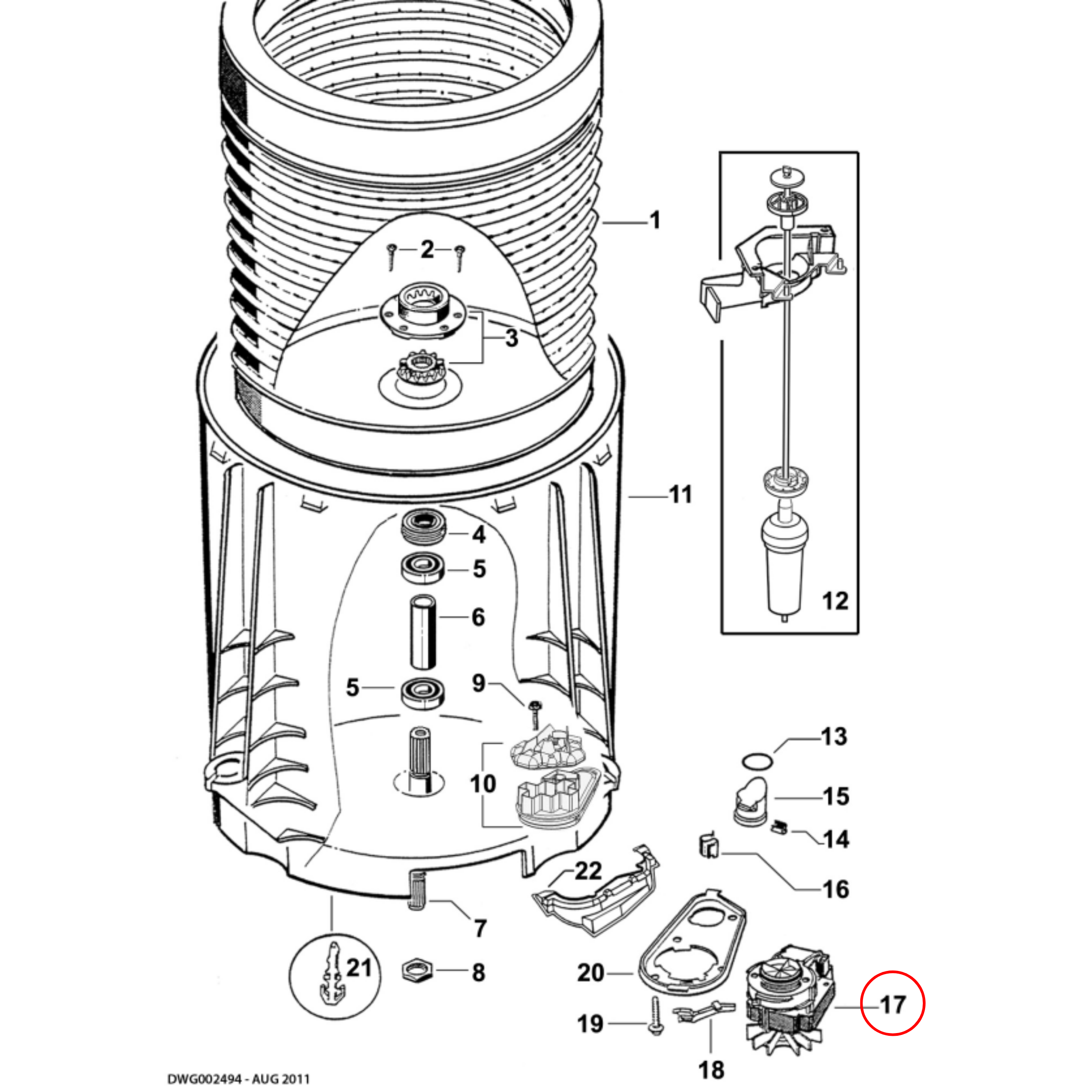

Diagram Reference: Number 17 from model WA70T60FW1 (92158-A)
Product Details:

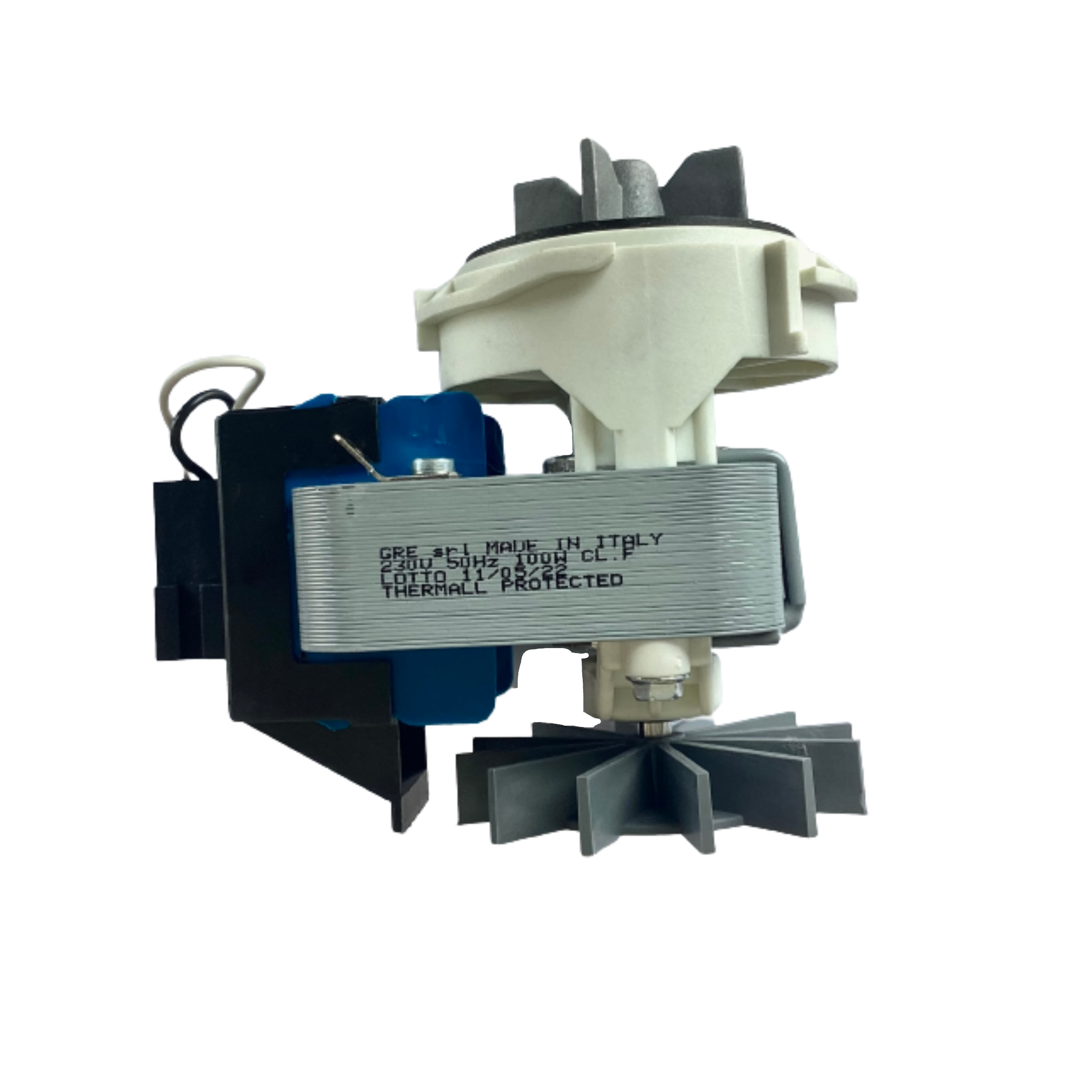

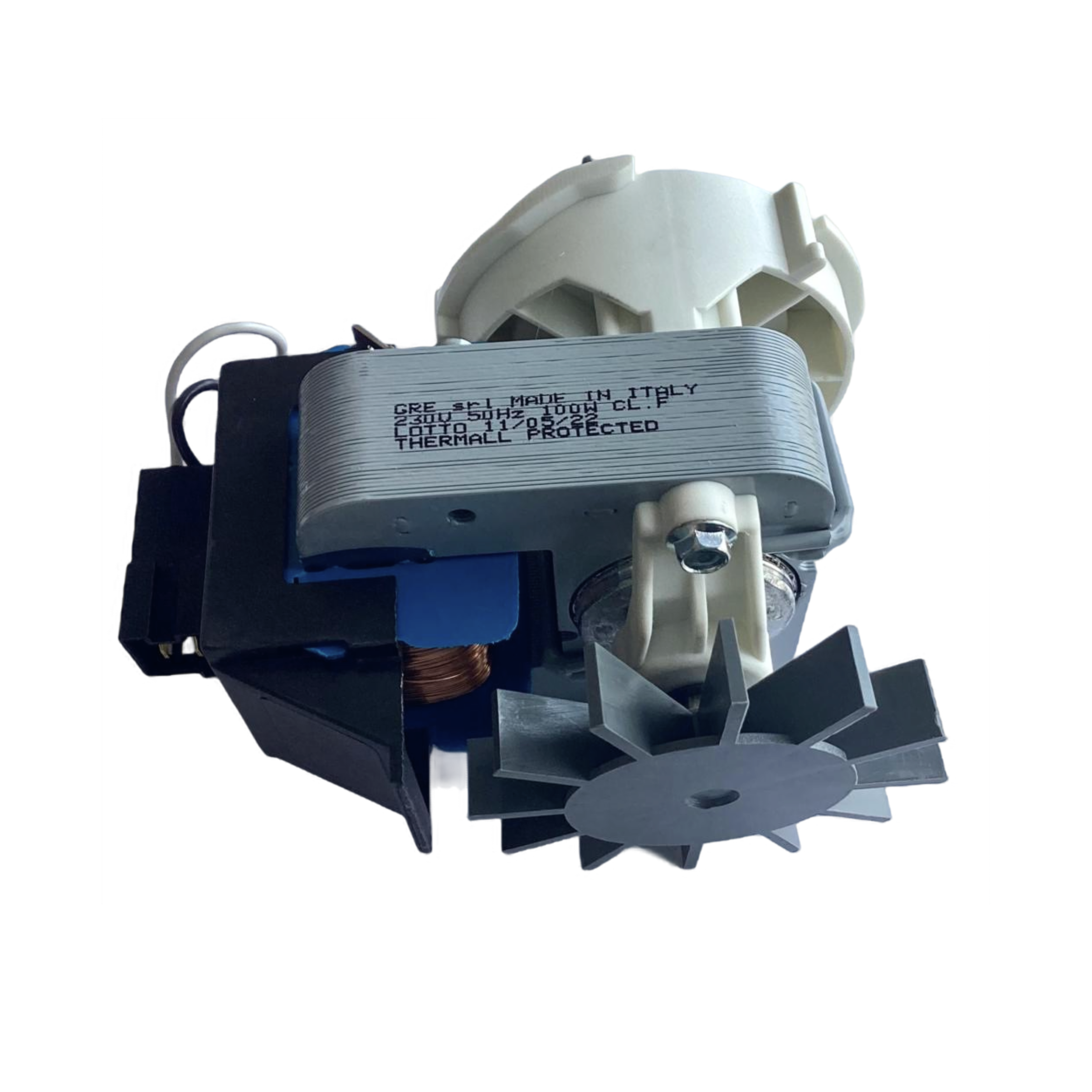

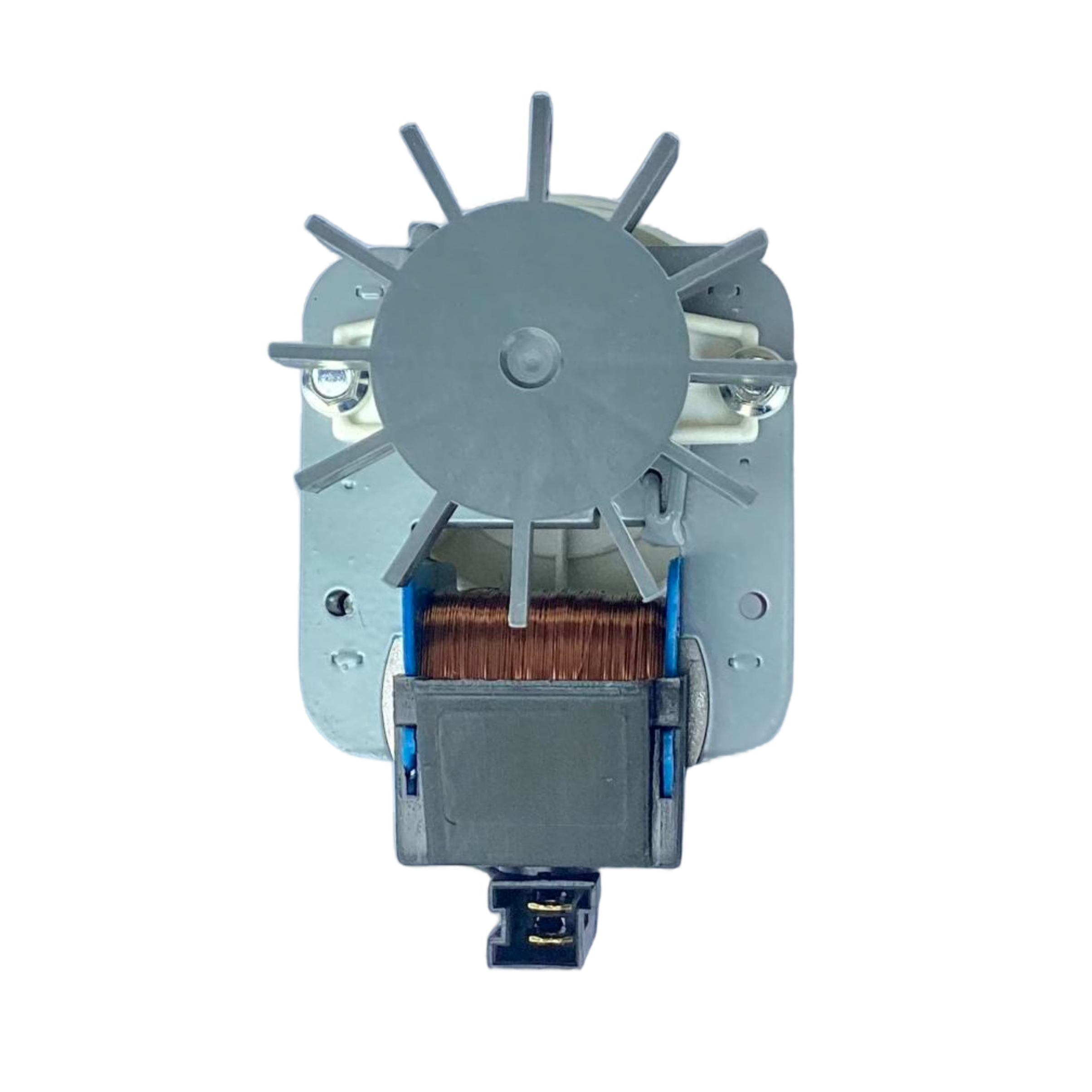

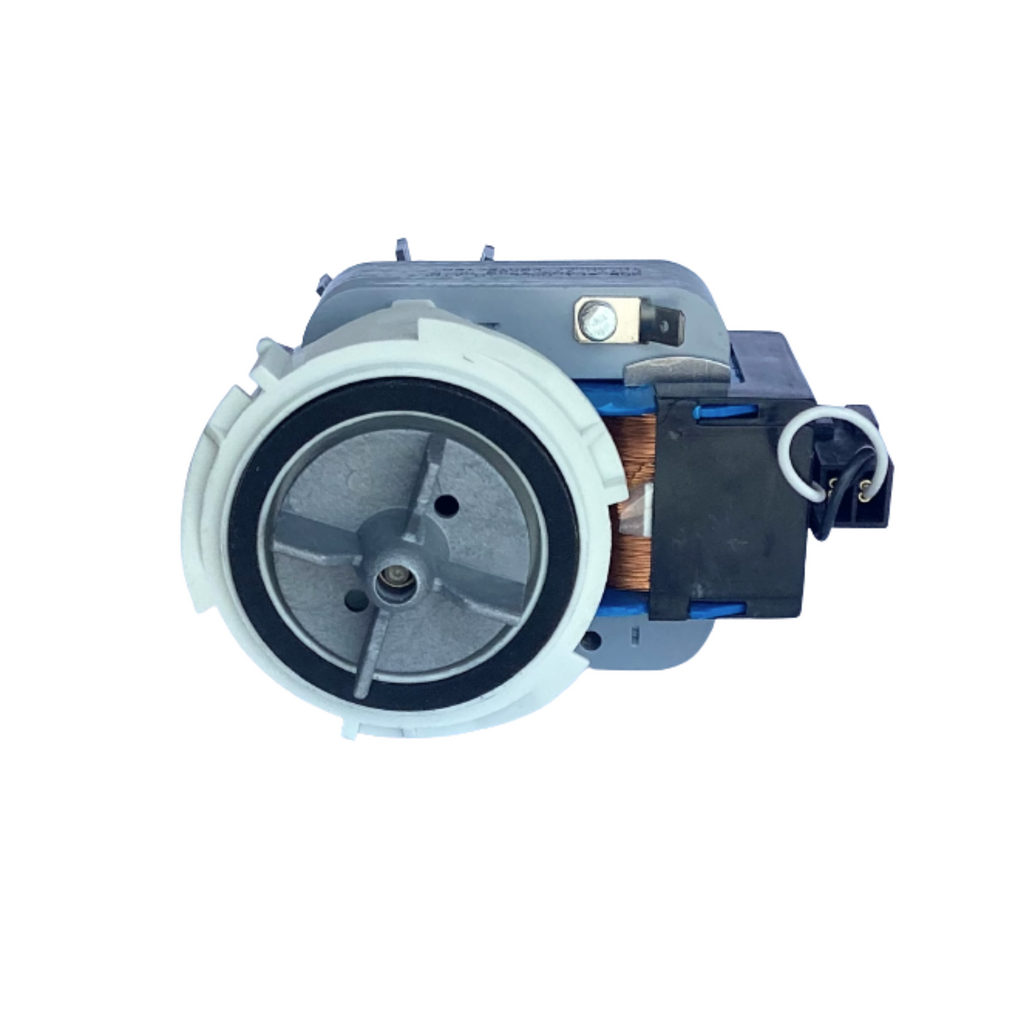

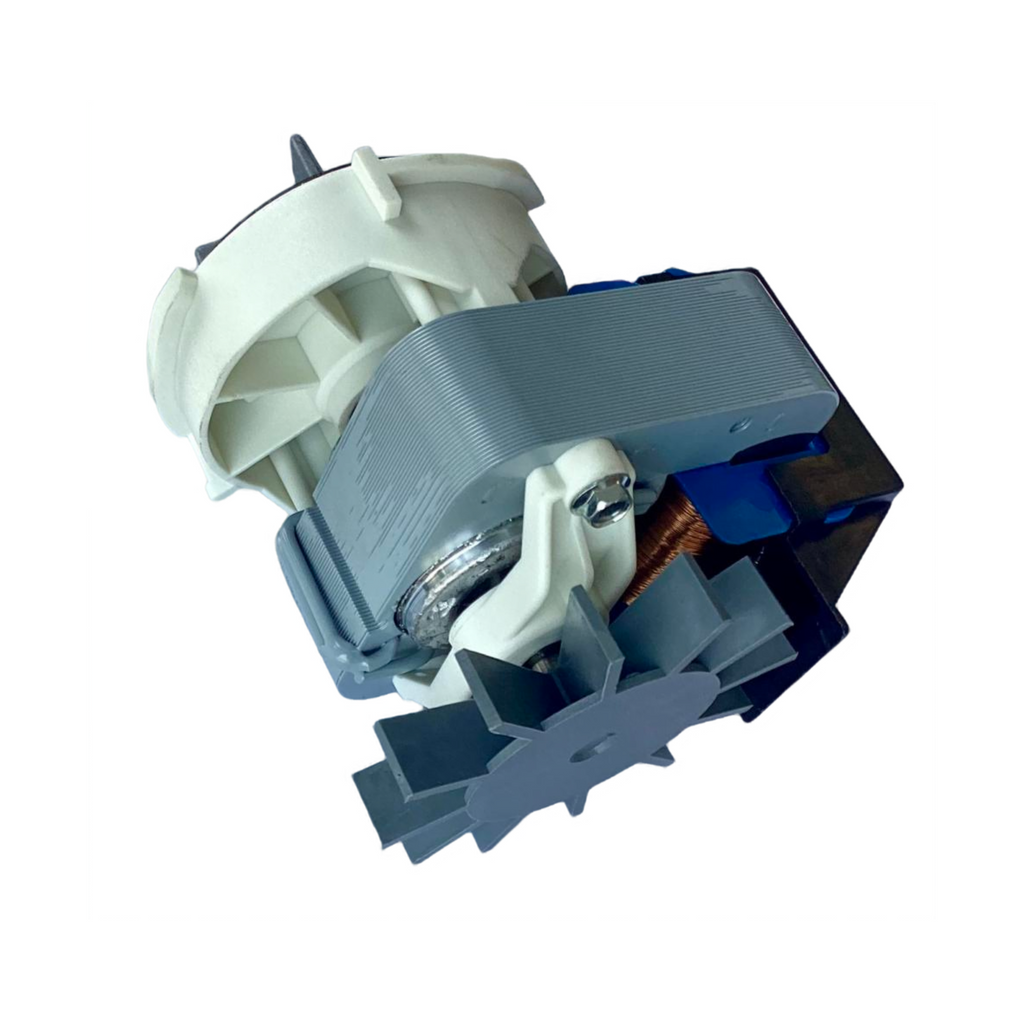

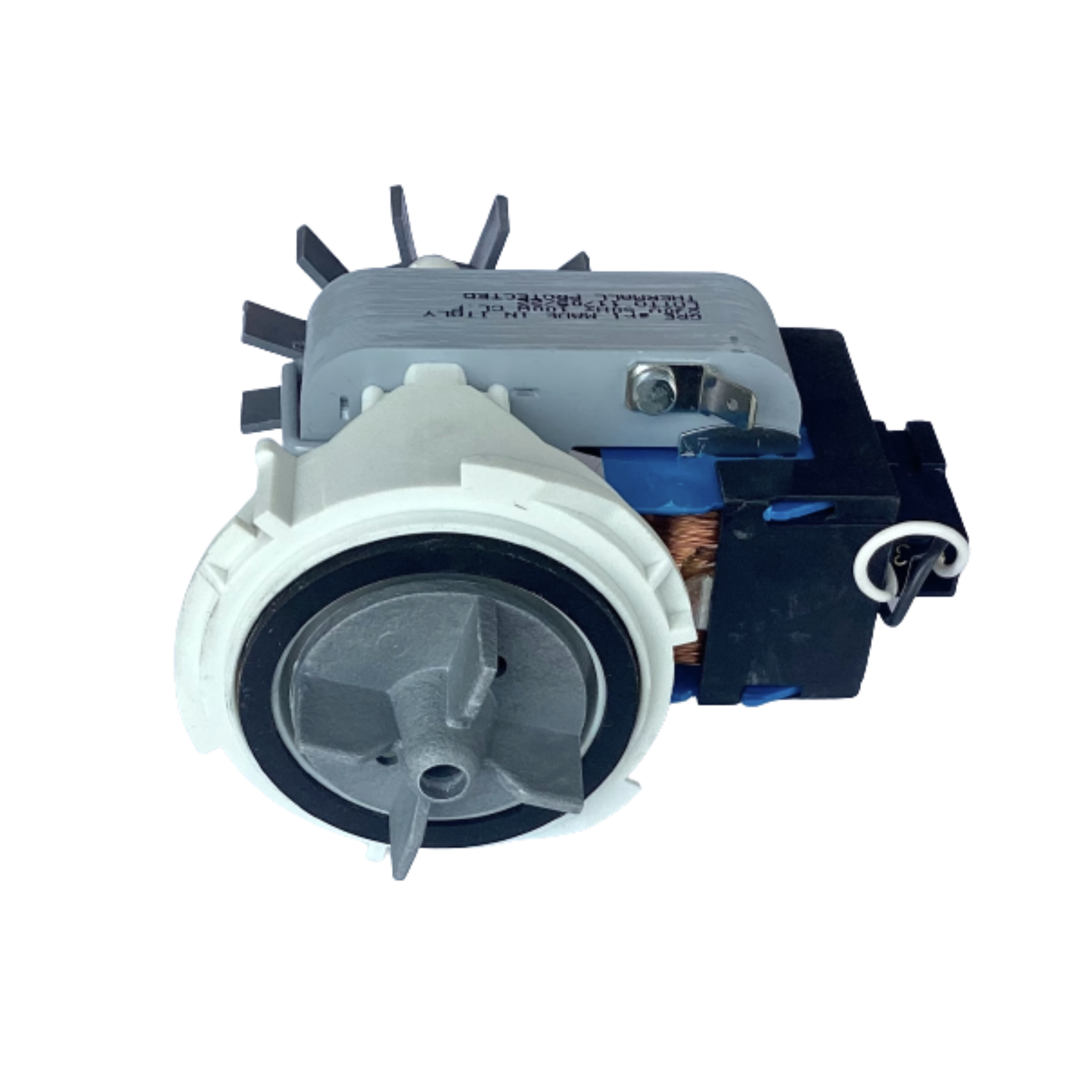

This Fisher & Paykel compatible electric drain pump suits many early model top load washing machines. It’s a direct replacement for a wide range of genuine and aftermarket part numbers, designed to restore your machine’s draining performance.
-
6.4mm spade terminals
-
Does not suit models beginning with WL
-
Not suitable for Aquasmart models (use part 479627 instead)
-
Can fix "no power" issues caused by damaged or rattling pumps in Phase 5 SmartDrive models
🔧 Warning: Long grey water hoses may cause the pump to draw more current, leading to faults or beeping error codes in your electronic module. A siphon break or gravity drain setup is recommended.
Models This Part Suits:
MW Series:
MW500, MW501, MW503, MW508, MW059, MW511, MW512, MW513, MW600, MW601, MW603, MW608, MW612, MW613, MW700
GW Series (SmartDrive):
GW500, GW501, GW051, GW503, GW508, GW509, GW512, GW600, GW600B, GW601, GW603, GW608, GW609, GW611, GW612, GW650A, GW700B, GW701, GW711, GW712, GW812
IW Series (Intuitive):
IW509, IW511, IW512, IW609, IW711, IW712, IW811, IW812
WA & FabricSmart Series:
WA70T60FW1 (92158-A), WA65T60GW1, WA75T65GW1, WA80T65GW1 (92193-A)
Also suits: WA55T56G, WA65T60G, WA70T60F, WA70T60G, WA75T65G, WA80T65F, WA80T65G
Not compatible with Gentle Annie models, GW52U, or any models starting with WL
If you're not sure this is the right part, just send your model number to sales@fastspares.com.au and we’ll confirm compatibility.
