Description

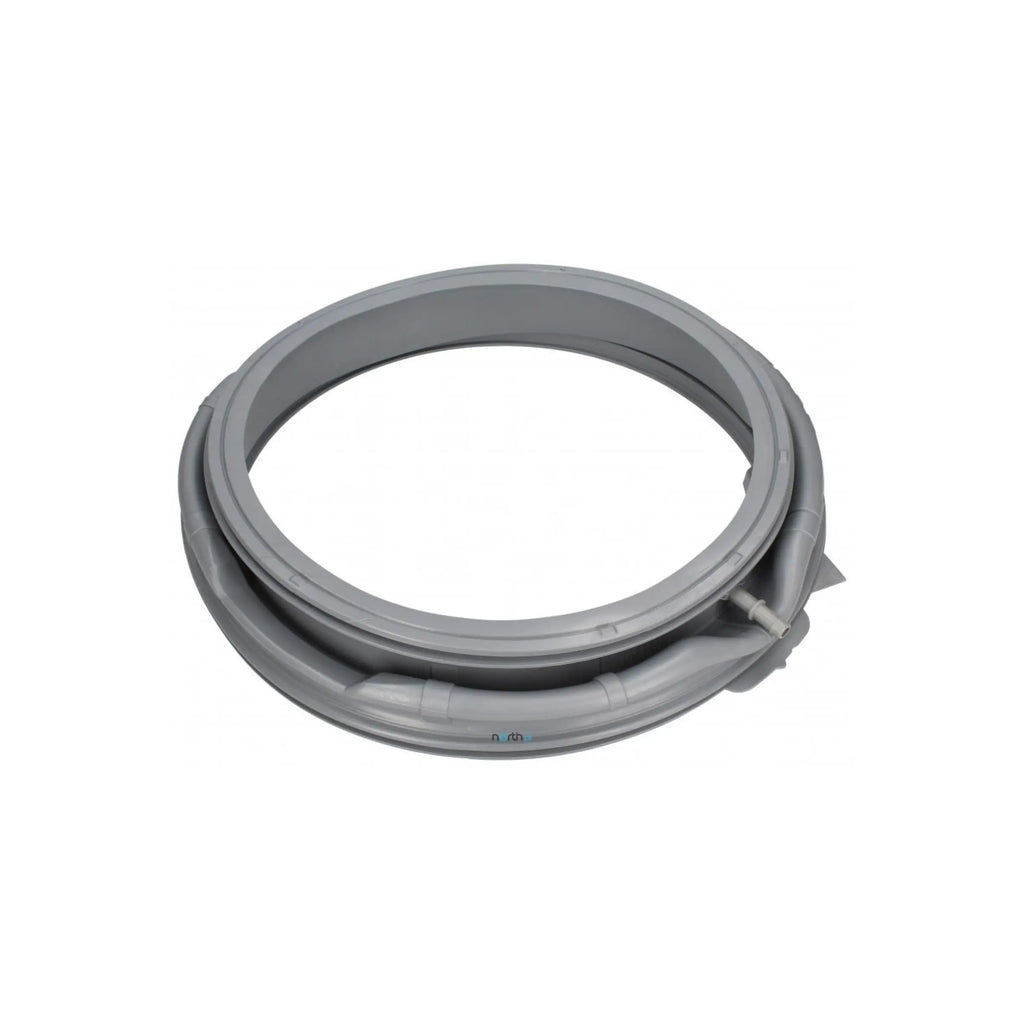

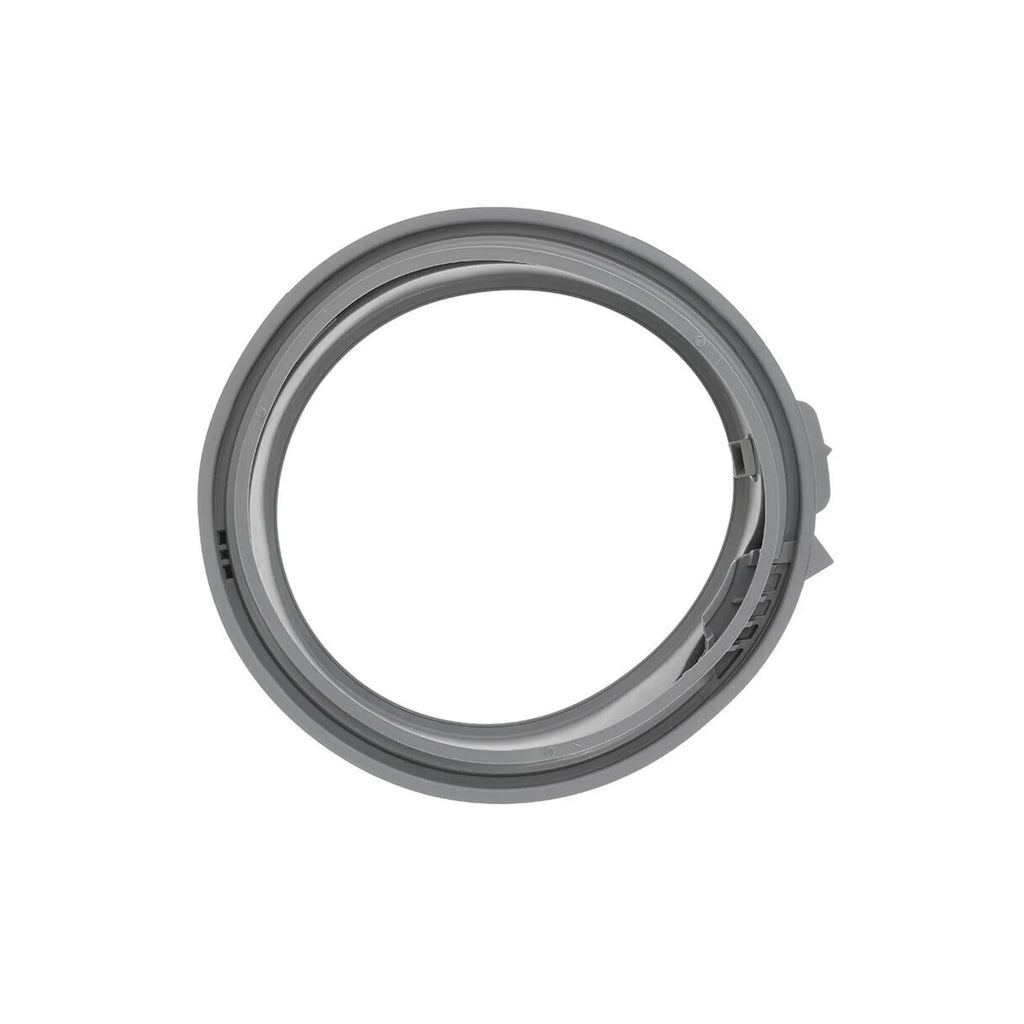

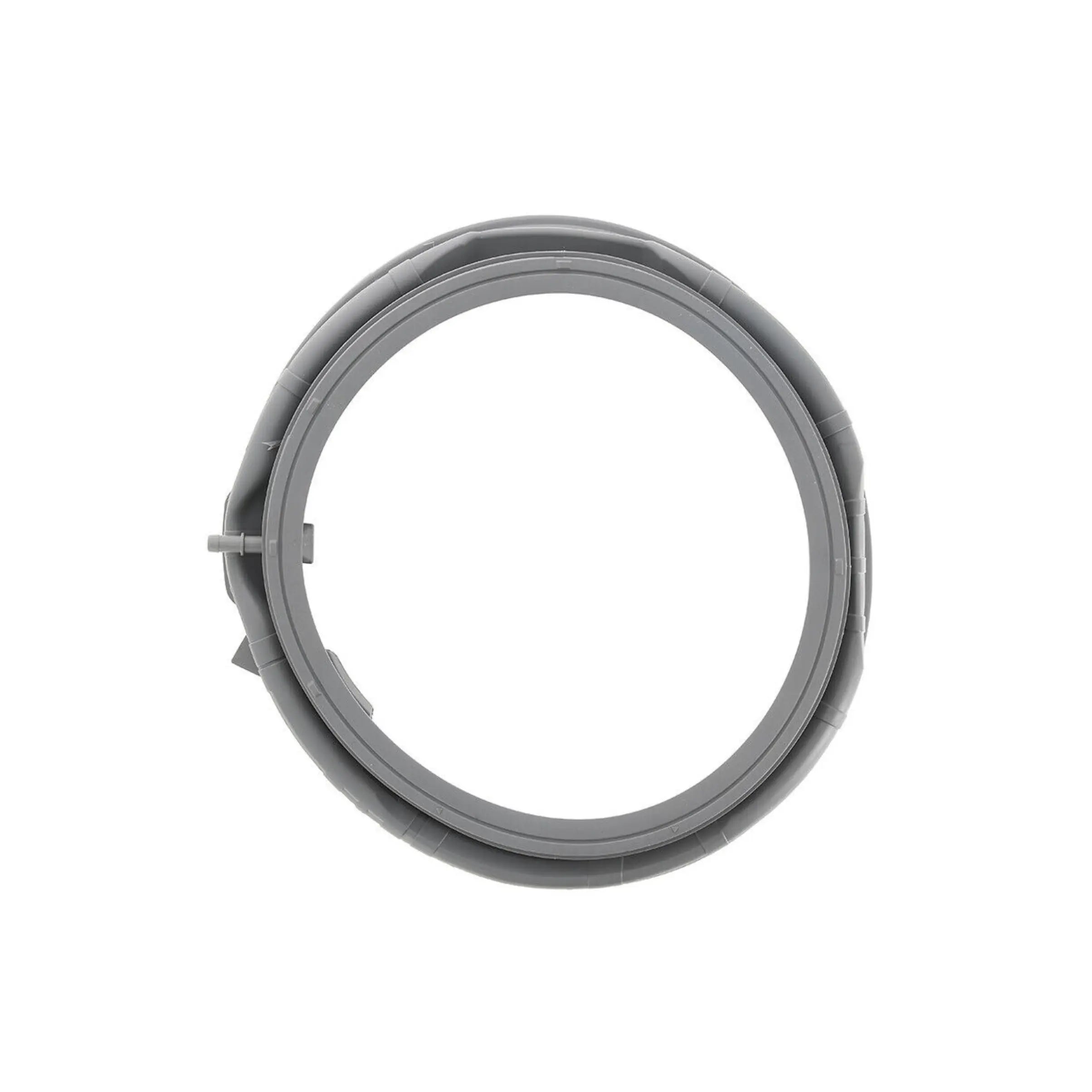

DC64-03690A Samsung Front Load Washing Machine Door Seal / Gasket
The DC64-03690A Samsung Washing Machine Door Seal is a replacement door gasket suitable for selected Samsung front load washing machines.
Part number DC64-03690A supersedes DC64-03197A and DC97-18852A, making it the replacement part for compatible machines previously using either of those older part numbers.

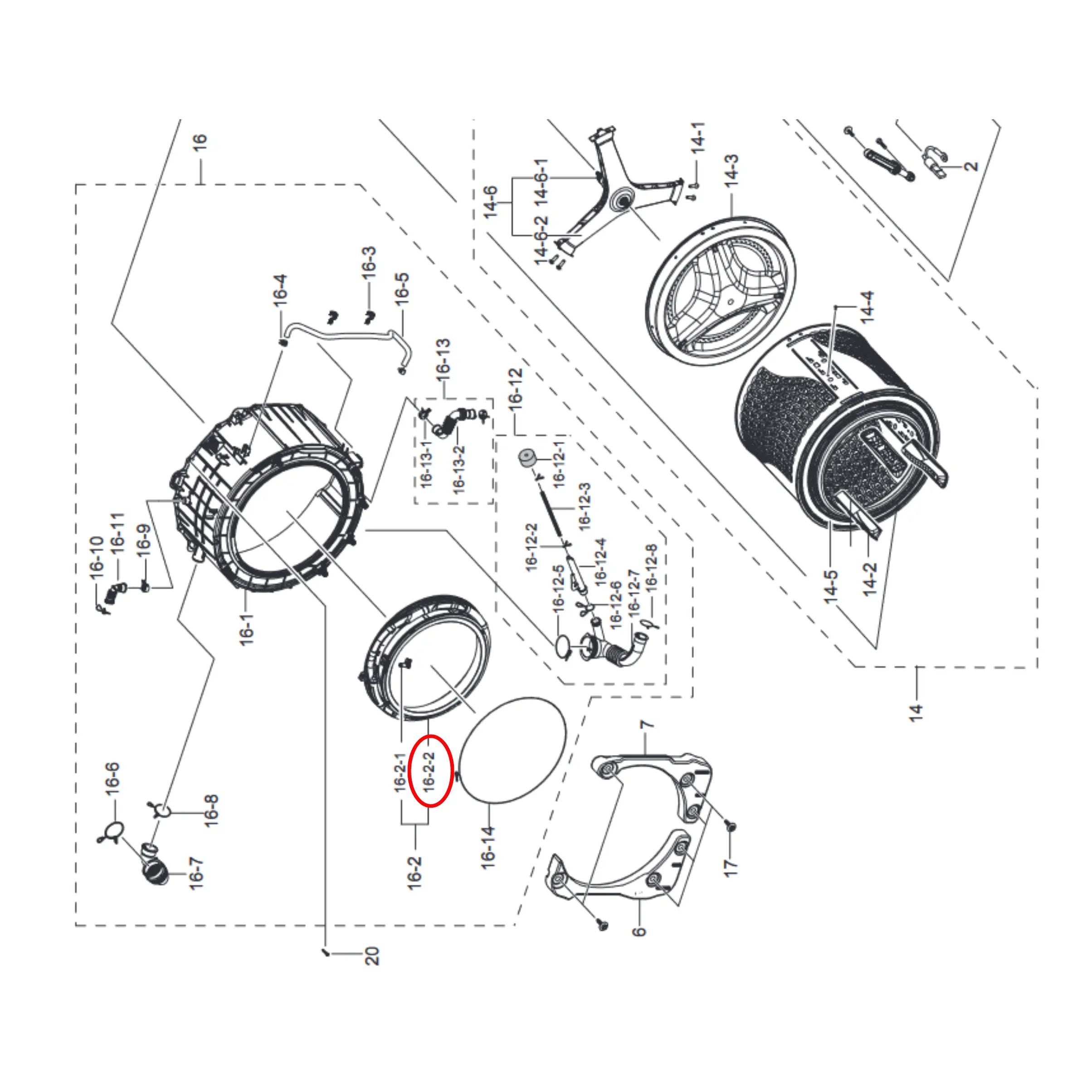

DC64-03690A is shown as item 16-2-2 on the parts diagram. The reference diagram is from model WW95N64FRPW/SA.
Product Details
- Current Part Number: DC64-03690A
- Supersedes: DC64-03197A
- Supersedes: DC97-18852A
- Brand: Samsung
- Part Type: Washing Machine Door Seal / Door Gasket
- Also Known As: Door Boot, Door Bellows, Rubber Door Gasket, Washer Door Seal
- Appliance Type: Front Load Washing Machine
- Diagram Position: 16-2-2
- Reference Model: WW95N64FRPW/SA
Superseded Part Numbers
The DC64-03690A Samsung washing machine door seal replaces:
- DC64-03197A
- DC97-18852A
If your existing seal, appliance documentation or previous part number refers to DC64-03197A or DC97-18852A, the current replacement is DC64-03690A where model compatibility is confirmed.
Common Fault Symptoms
This replacement Samsung washing machine door seal may be required when:
- Water leaks from around the washing machine door
- Rubber gasket is torn or split
- Door seal has been punctured
- Rubber has become hard, brittle or distorted
- Existing gasket is heavily worn
- Clothes catch on damaged rubber
- Water appears underneath the front of the washer
- The machine leaks during washing, rinsing or spinning
- Existing door bellows no longer sit correctly around the opening
Models This Part Suits
The DC64-03690A Samsung washing machine door seal suits selected models including:
WW85T654DLE, WW80K6414QW, WW80K6414QW/EU, WW90J6410CW, WW90J6410CW/EU, WW90K6414QX, WW90K6414QX/EU, WW90K6410QX, WW90K6410QX/EU, WW80J6410CW/EU, WW80J6410CX/EU, WW80K6414QX/EU, WW90J6410CX/EU, WW90K6410QW/EU, WW90K6414QW/EU, WW90K6414QXEU, WW95N64FRPW/SA, WW95N54F5CW/SA, WW10T654DLE, and possibly more.
