Description

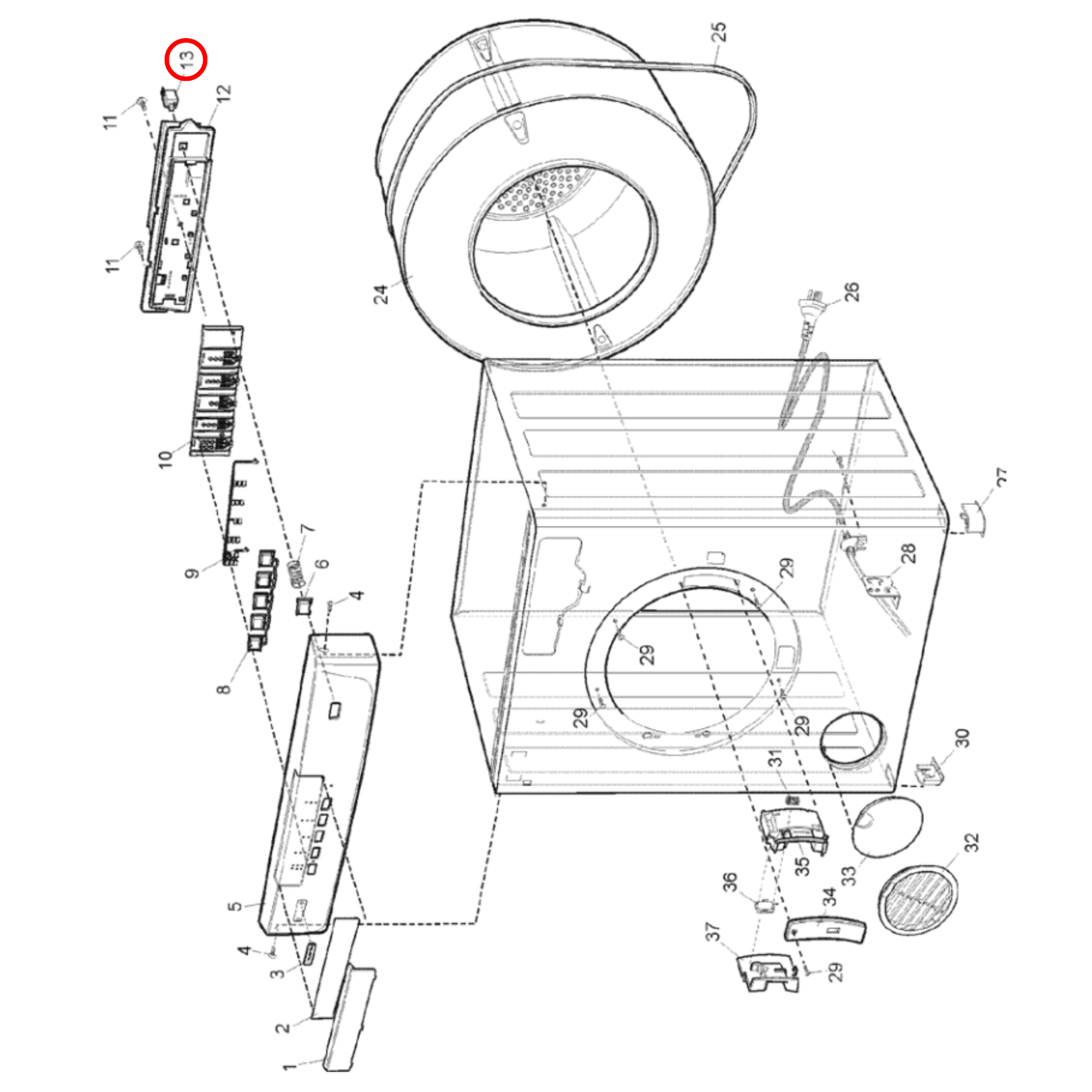

Part number 0534300050 supersedes 0534300042, 0534200178, and D016. It appears as number 13 on the diagram (see the last photo). The diagram shown is from model EDV505 (91600202700).
Specifications:
-
16 Amp, 250 Volt AC
-
4.8 mm spade terminals
-
Body: 13 mm x 15 mm x 19 mm
-
Button: 6 mm x 6 mm
Compatible Models:
EDV505, ADF6SE2, BDW60S, EDE605A00, EDV505 (91600202700), EDV505 (91600202701), EDV5552 (91600208500), EDV605 (91600202800), EDV605 (91600202801), EDV605S (91600203100), EDV6552 (91600208600), EDV6552 (91600208601), LD605EB01 (91600100601), ED12GSA, 800RLD00, 800RLD01, IDF6SE3, LDW60S, 22S750L00, 22S750L02, 22S750N (91304104700), 22S800L00, 22S800L02, 22S800L03, 22S805L00, 22S805L02, 22S950L00, 22S950L02, 22S950L03, 36P450L00, 36P450L02, 36P450L03, 36P500M00, 36S550L00, 36S550L02, 36S550M00, 36S550M (913001215), 36S550M (91304100000), 36S550M (91304100001), 36S550N (913041051), 36S605L00, 36S605L02, 36S605M00, 36S605M (91304100100), 36S605M (91304100101), 36S605N (91304105700), LD504A00, LD505EB00, LD505EB01, LD505EB01 (91600100501), LD505EB (91600200600), LD515A00, LD605EB00, LD605EB01, LD605EB (91600200700), LT608SA01, LT608SA02, LT608SA03, LT609SA00, LT609SA01, LT609SAU03, LT758SA01, LT809SA00, LT809SA01, LT819SA00, LT819SA01, LT908SA01, LT908SA03, LT955SA00, LT955SA01, LT959SA*00, WDV5051 (91600208100), WDV5051 (91600208101), WDV5051 (91600208102), WDV5051 (91600208103), WDV6051 (91600209600)
…and possibly more.
