Description

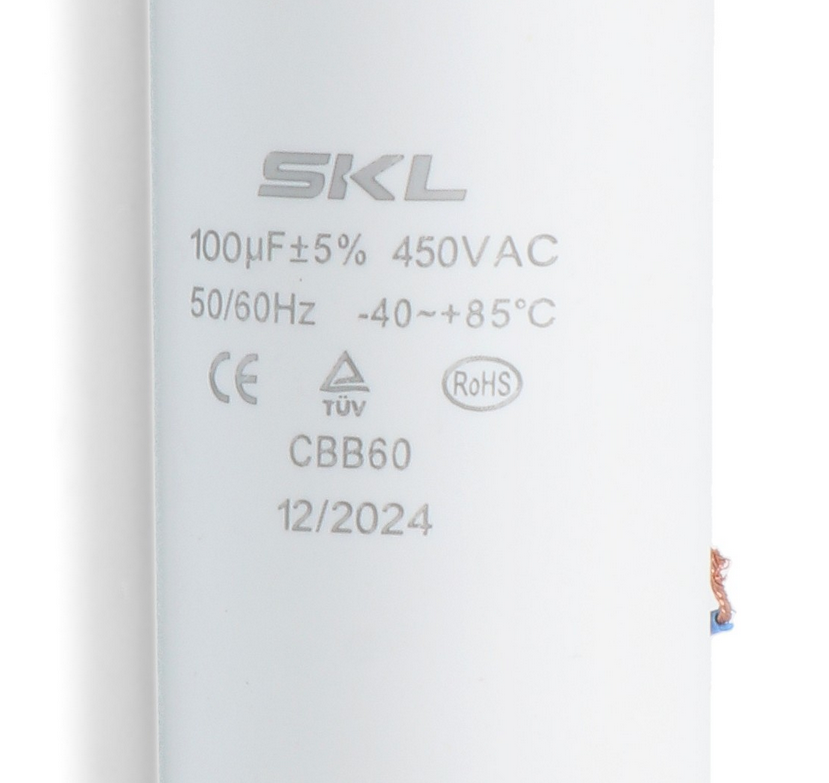

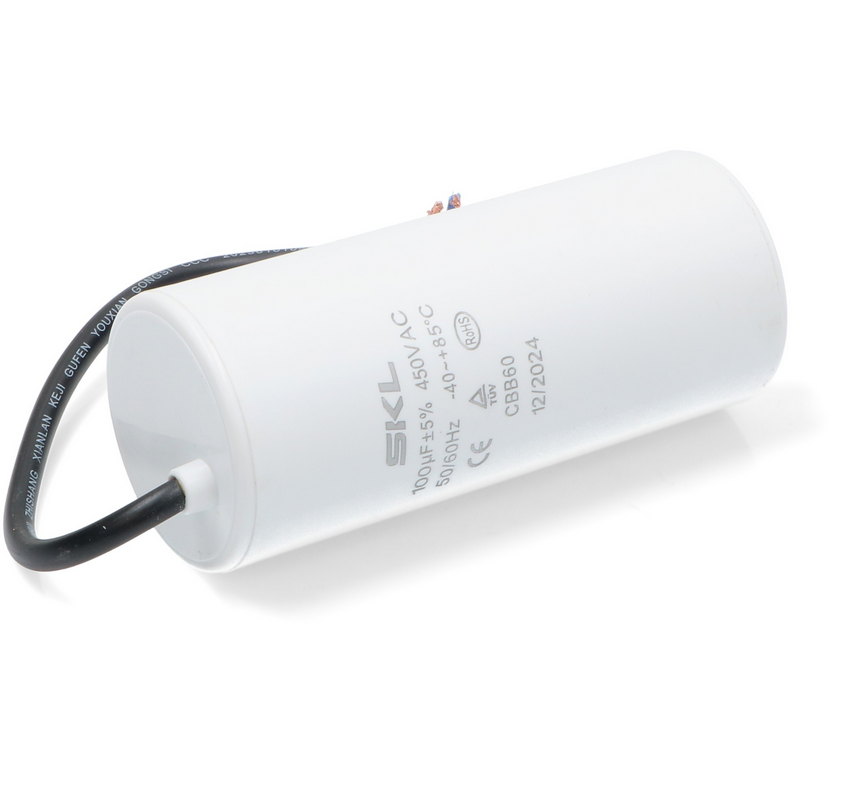

CAP100L Capacitor 100UF With Leads 450V Size Ø55x120mm
The CAP100L 100µF motor capacitor 450V with leads is a universal run capacitor designed for electric motors used in a wide range of household appliances and equipment.
Specifications
Capacitance: 100µF
Voltage Rating: 450VAC
Type: Motor Run Capacitor
Diameter: Ø55mm
Length: 120mm
Connection Type: Leads / Cable wires
Applications
This 100µF 450V motor capacitor is commonly used in:
-
Washing machines
-
Dryers
-
Air conditioners
-
Compressors
-
Water pumps
-
Industrial motors
-
Other electric motor driven appliances
Common Fault Symptoms
-
Motor humming but not starting
-
Appliance struggling to start
-
Motor overheating
-
Intermittent operation
-
Visible capacitor swelling or damage
Replacing the CAP100L 100µF motor capacitor helps restore proper motor start and running performance.
Important
-
Always disconnect power before replacing electrical components
-
Ensure the capacitance (µF) and voltage rating match the original capacitor
