Description

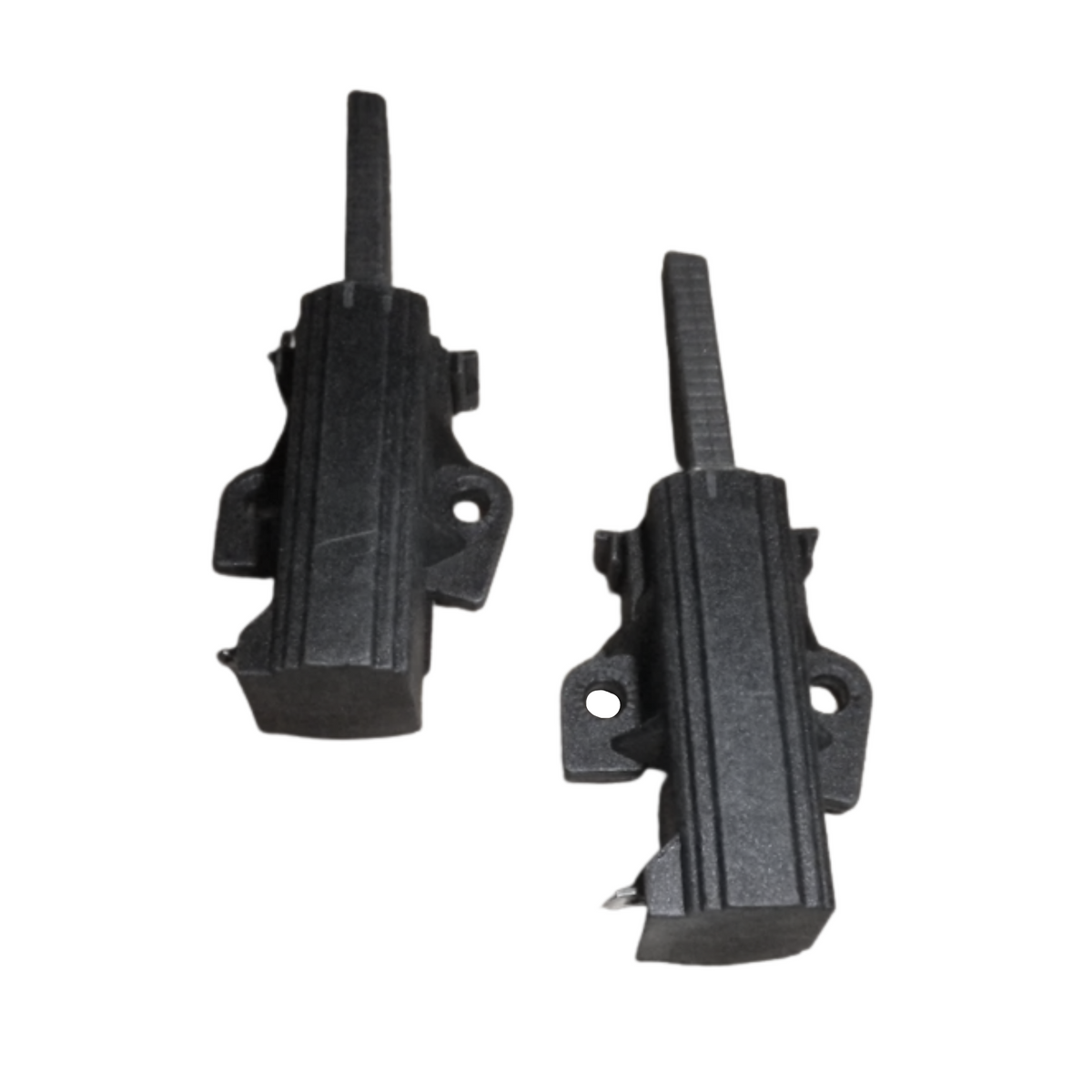

Part number BT102: washing machine carbon motor brush kit for Electrolux and Whirlpool.
Similar to part no: BT421, UN12102, RS84732, CAR89, 9894, 9894L, 9894WP, Whirlpool 481281719419, Indesit C00114885, Electrolux, AEG 4006020152.
Carbon dimensions 32mm long X 5mm thickness X 12.5mm wide.
Mounting holes 24mm apart. Locating spikes 18.5mm apart. Mounting holes 19mm back from front end of brushholder. Front locating spike is 9mm from front of brushholder. Brushholder length 45mm. Brushholder has PA-GF on bottom. Carbon has L93MF7 written on the side. 4.8mm side facing spade terminals.
Compatible models
LAV54600 (91400309200), LAV64600 (91400309000), LAV66600 (91400308900), LAV74330 (91400220403), LAV74330-W (91400220401), LAV74335 (91400220603), LAV74335-W (91400220602), LAV74630-W GB- (91400209703), LAV74630-W (91400209700), LAV74630-W (91400209702), LAV74700 (91400317400), LAV74700 (91400324800), LAV74800 (91400308800), LAV76639-W (91400224300)
Check your appliance model number against the list above before ordering, as manufacturers often use several part variations across a range.
