00633765 Bosch Front Load Washing Machine Door Lock

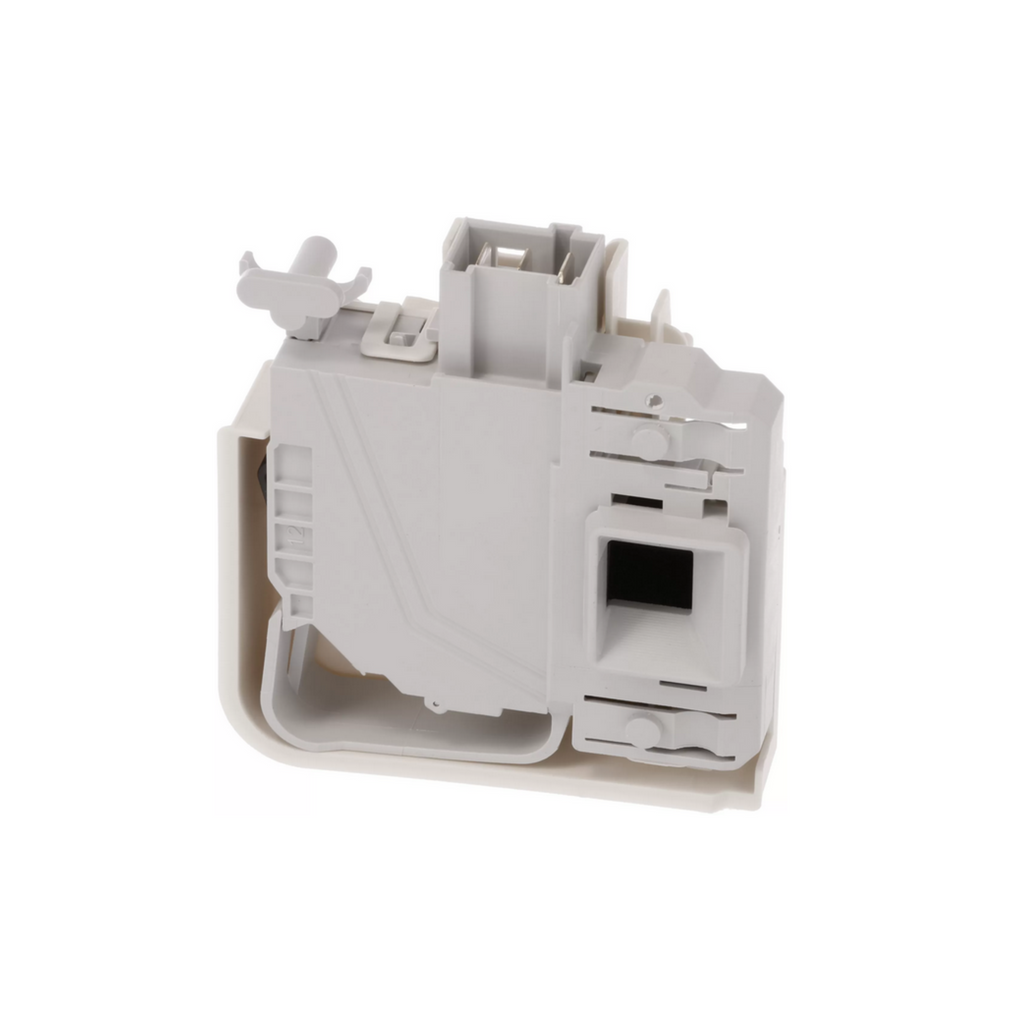

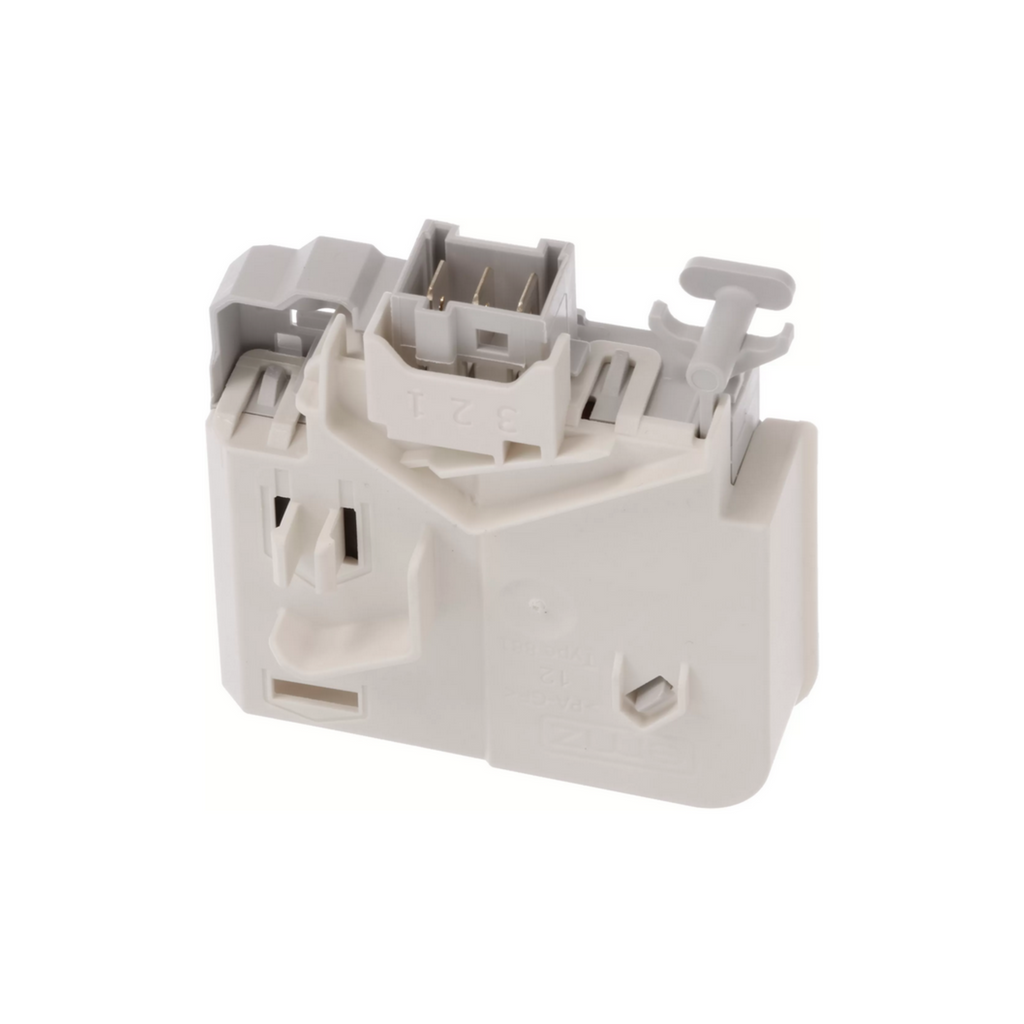

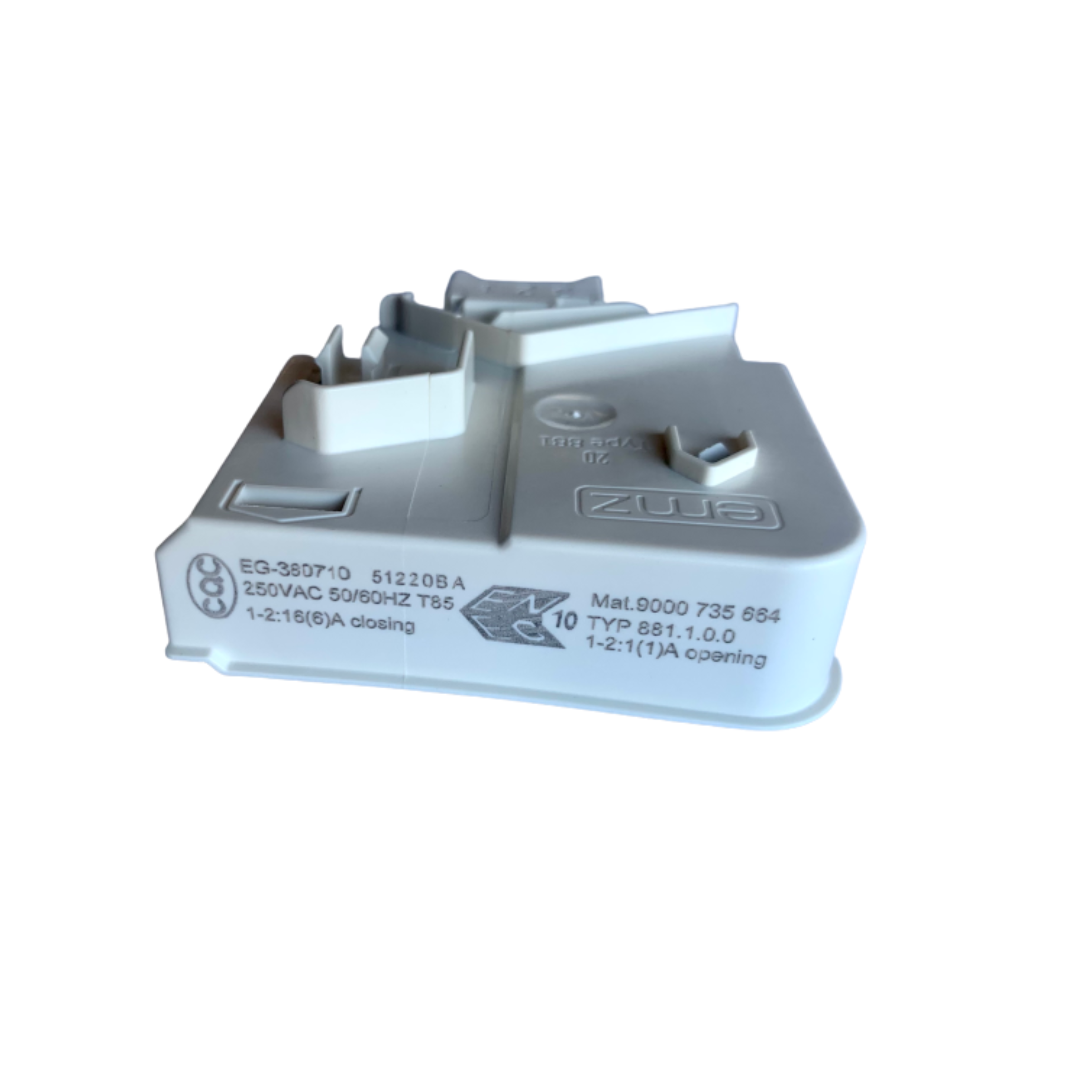

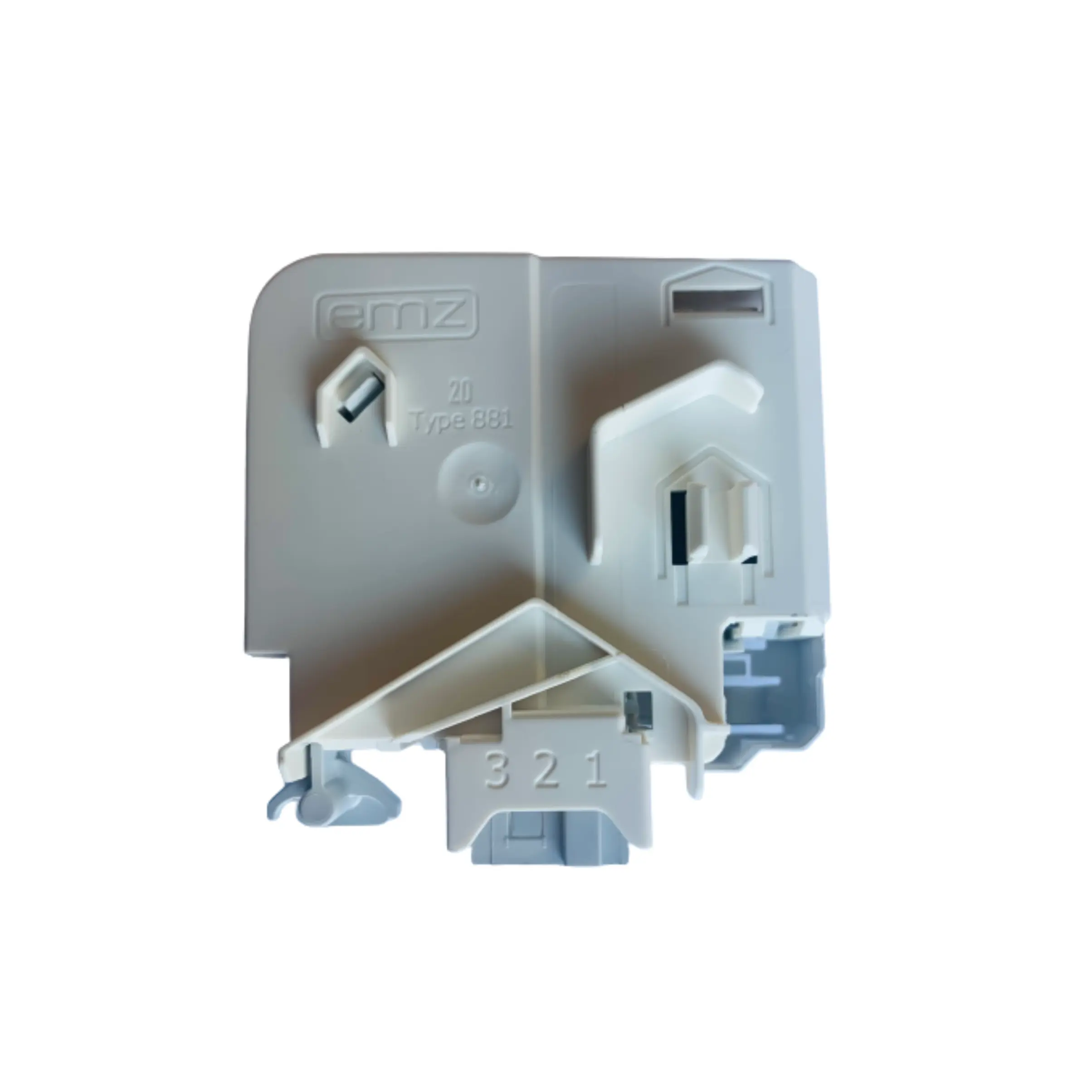

00633765 Bosch Front Load Washing Machine Door Lock (3 Pin), BO122, 00619468. Ensure your Bosch front load washing machine door locks securely with this genuine 3-pin door lock assembly.

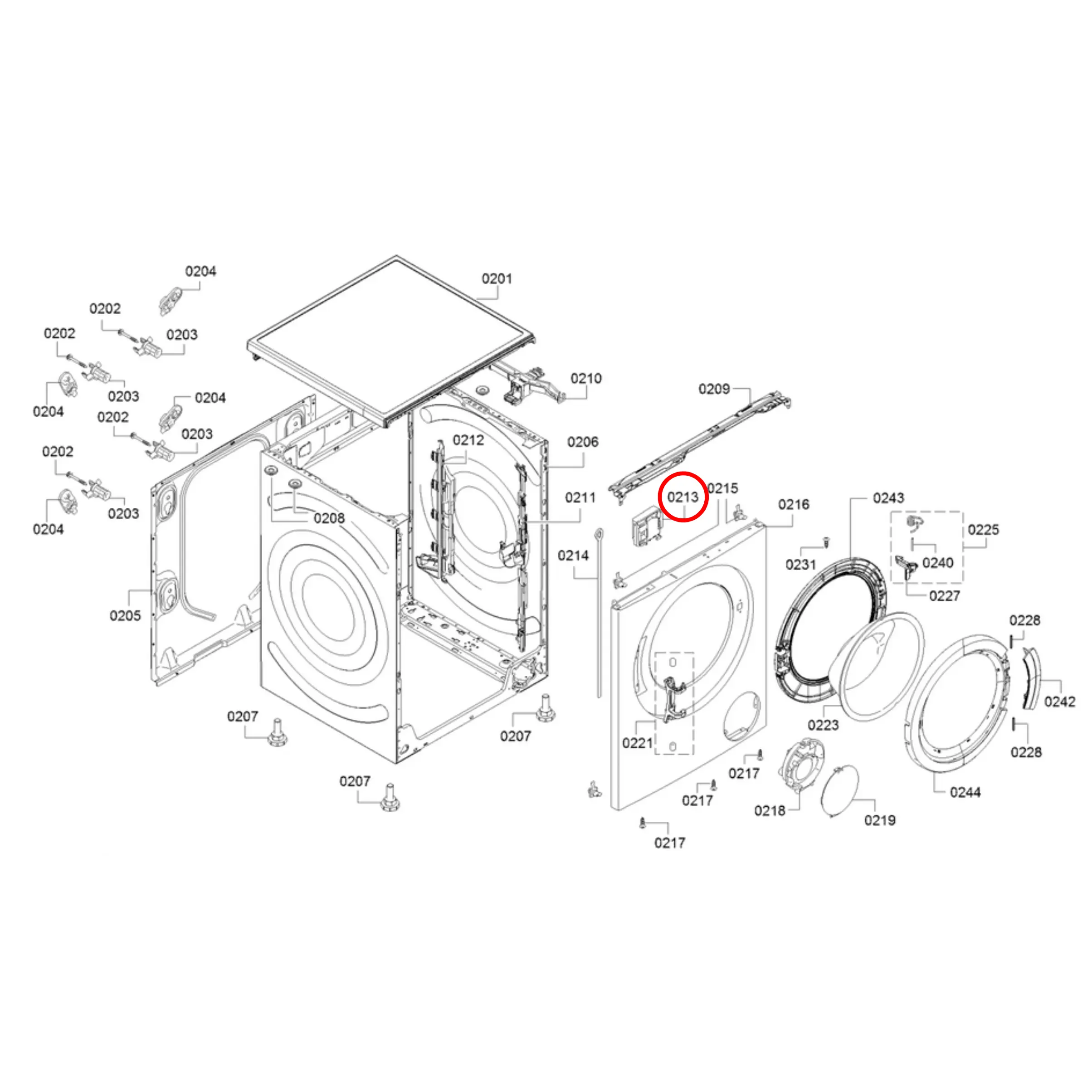

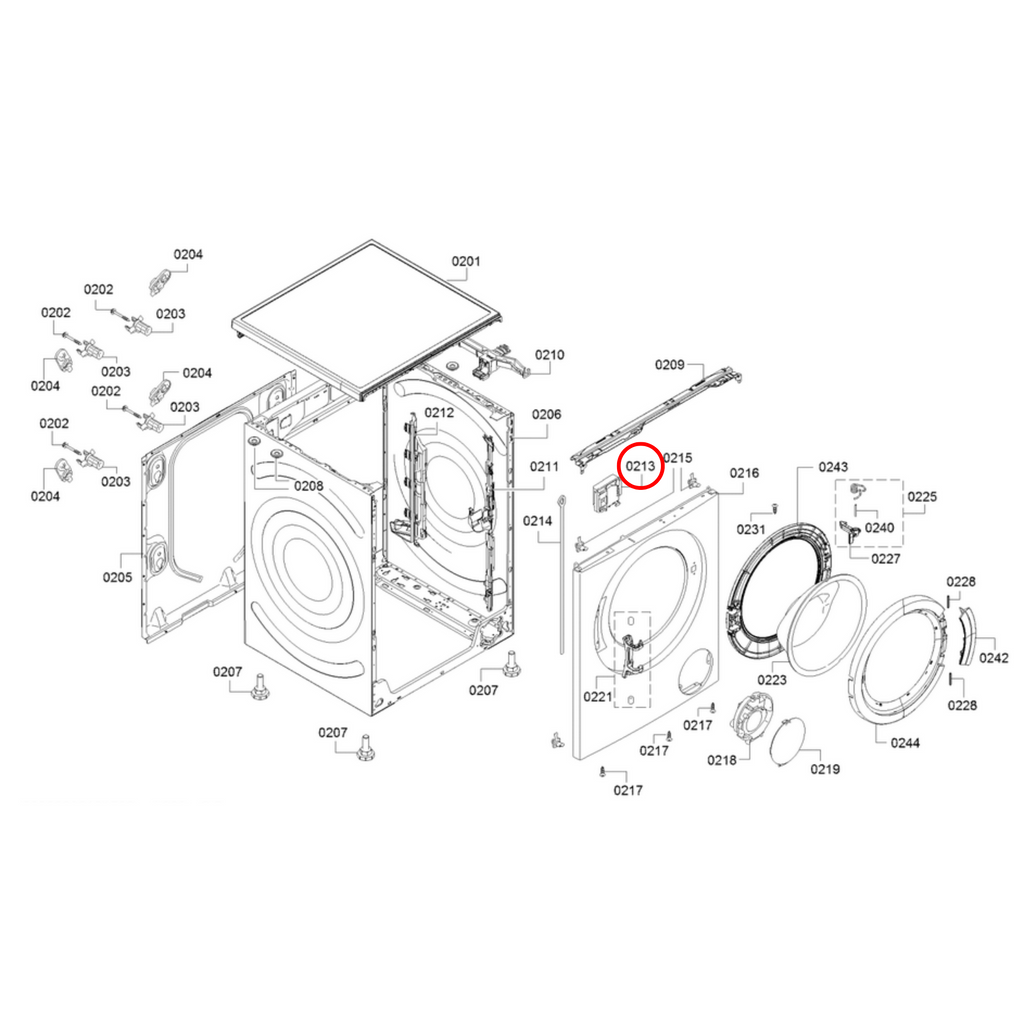

The 00633765 door lock is designed to prevent the machine from operating with the door open, ensuring safety during wash cycles. This part is a direct replacement for select Bosch models and corresponds to number 0213 in the Bosch parts diagram (second last product photo).
Product Details:
-
Part Number: 00633765
-
Also Known As: BO122, 00619468
-

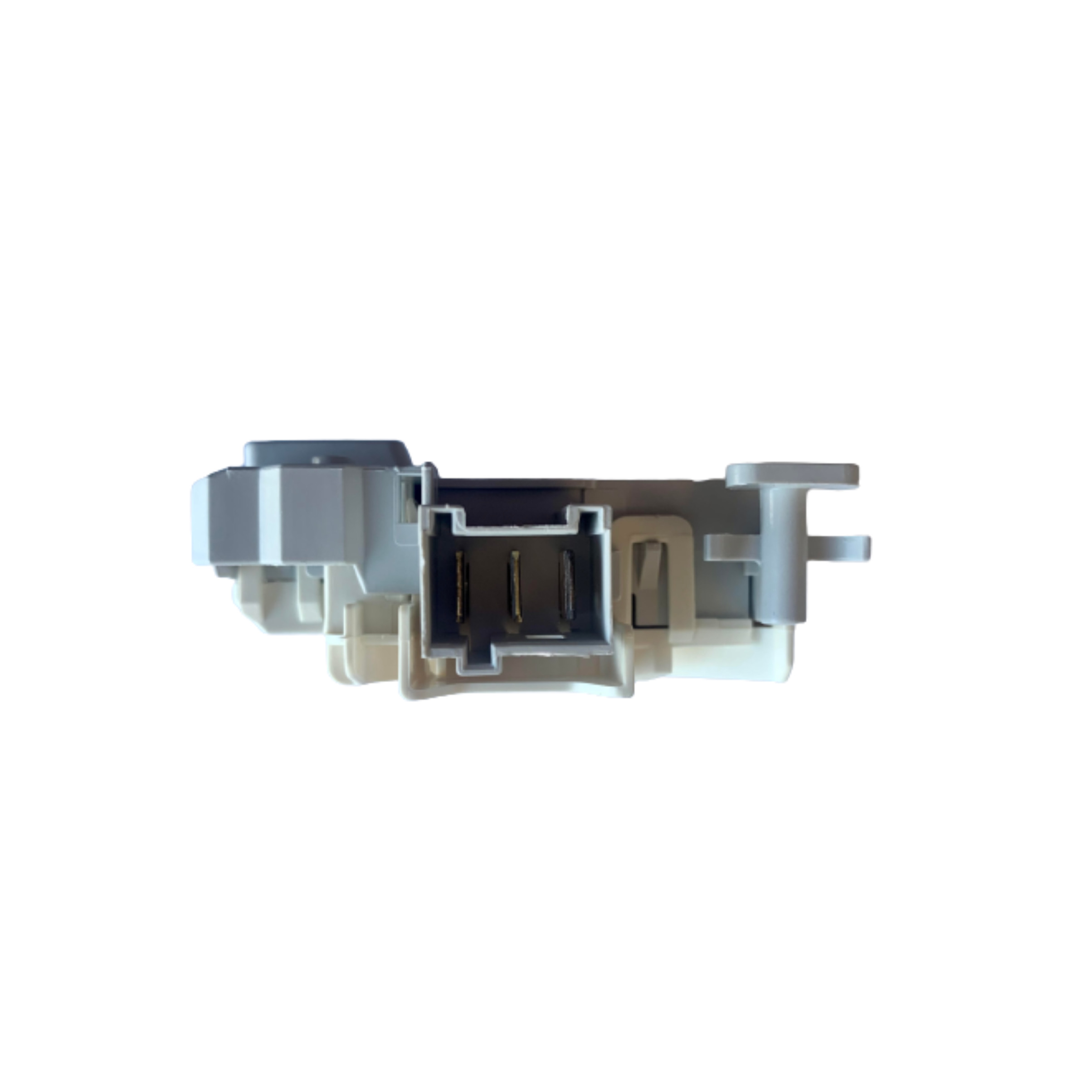

Pins: 3-pin connection
-
Function: Secures the door during operation and signals the machine to start
-
Diagram Reference: Number 0213 in the Bosch diagram for model WAK24220AU/02
-
Compatibility: Fits a wide range of Bosch front load washers
Compatible Bosch Models
WAP20320GR – WAS24720GR, WAP20360EE, WAS24460AU/04, WAS24460AU/03, WAS32742AU/08, WAS32440AU/07, WAS32440AU/10, WM16S741AU/01, WAS24460AU/05, WAS32742AU/10, WVH28440AU/01, WAS24460AU/06,
WAK24160AU/01, WAK24160AU/02, WAK24160AU/03, WAK24160AU/04, WAK24220AU/01, WAK24220AU/02, WAK24220AU/03, WM12S360AU/02
…and possibly more.
