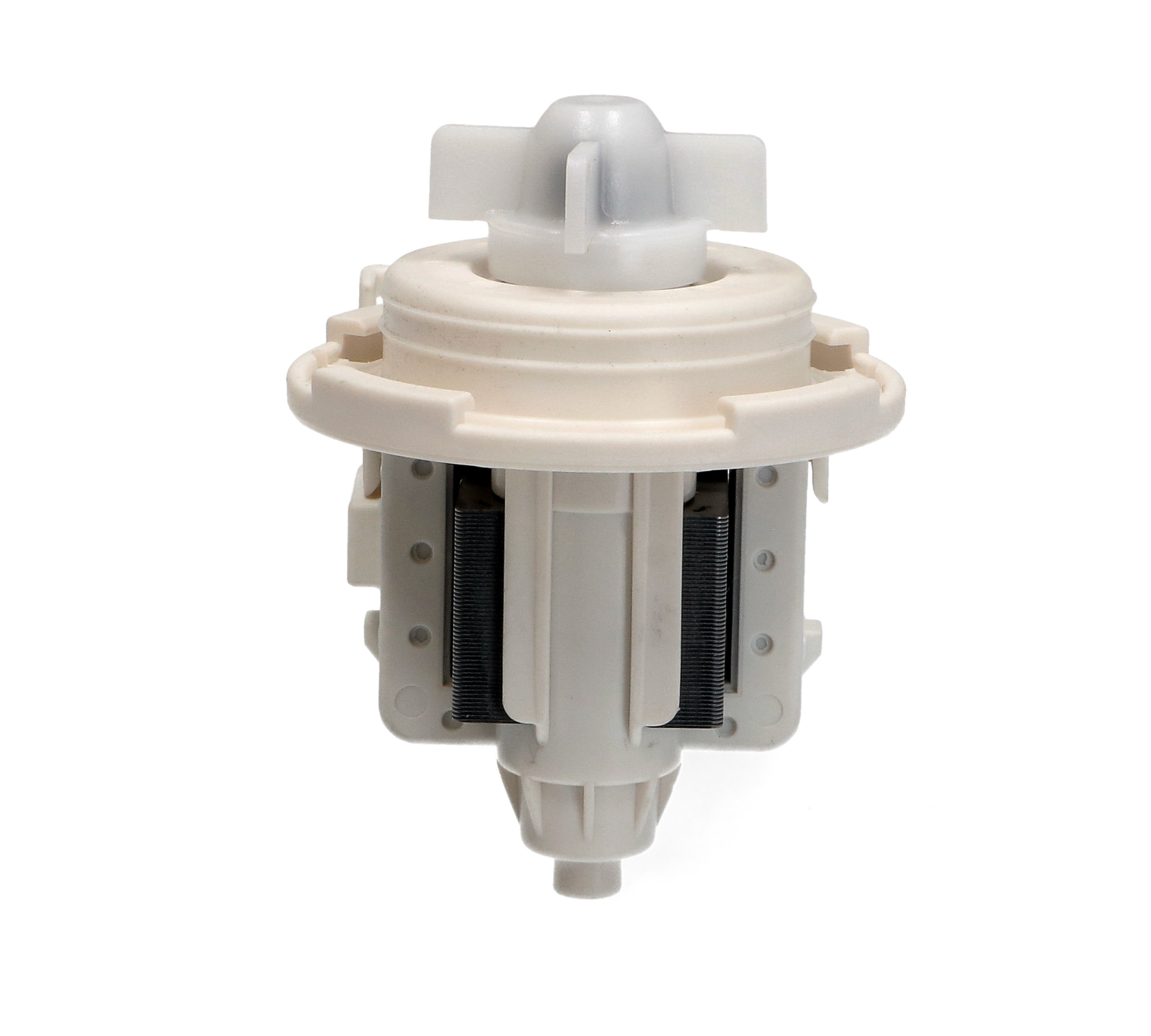

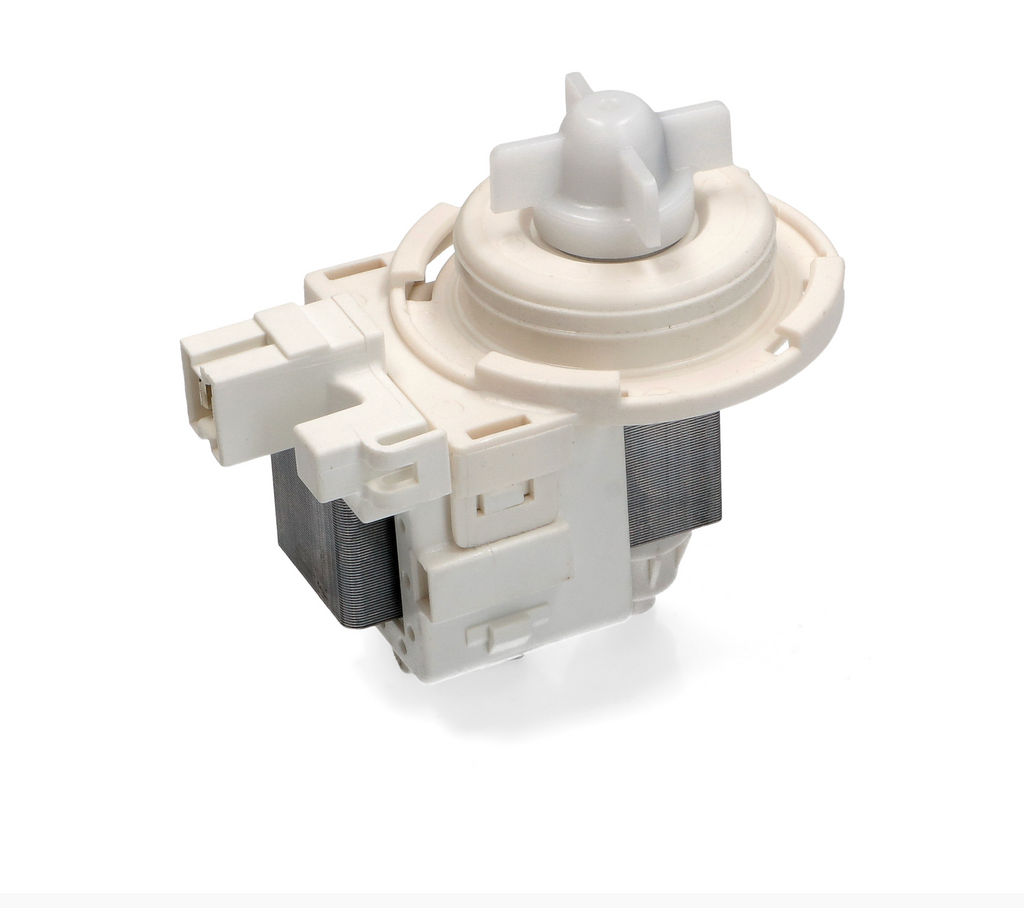

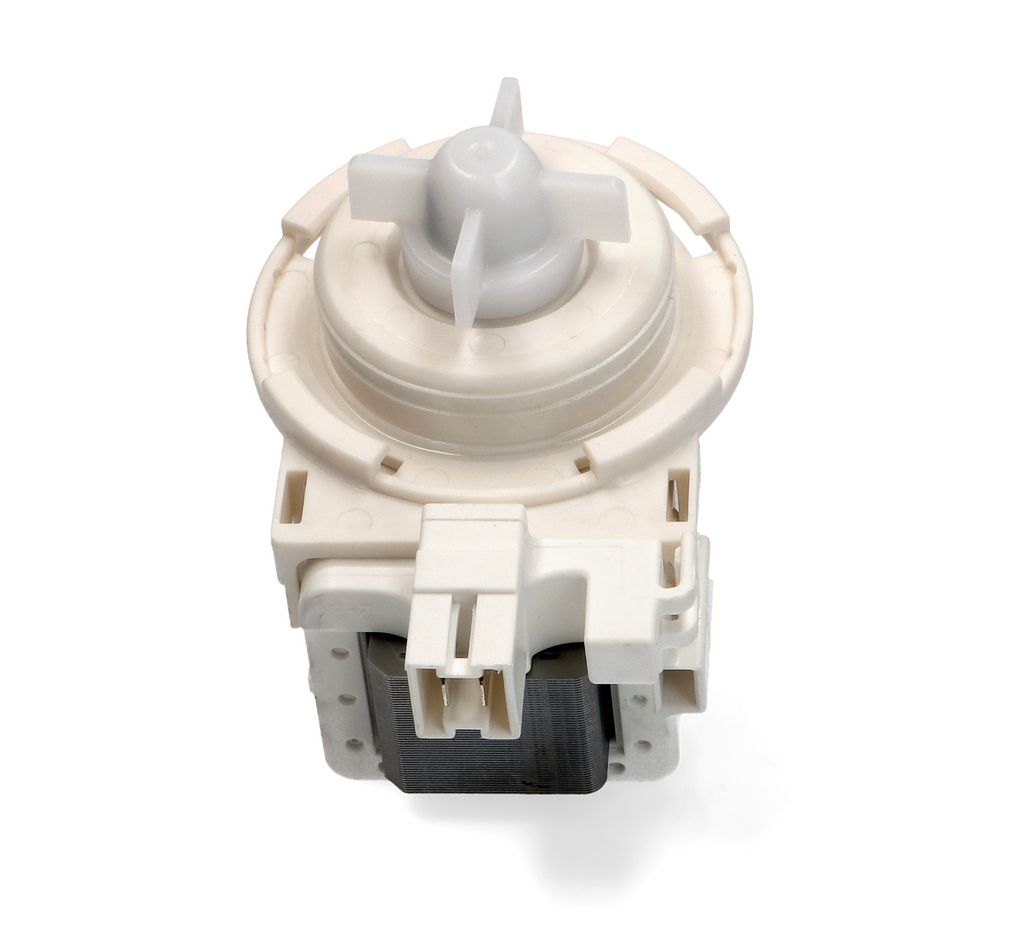

5631695 Miele Washing Machine Drain Pump - 6239563

5631695 Miele Washing Machine Drain Pump - 6239563 is a genuine replacement drain pump designed to remove wastewater from compatible Miele washing machines during the drain and spin cycles. Replacing a faulty drain pump restores proper water drainage, prevents standing water in the drum, and helps your washing machine complete every cycle efficiently.

Product Details

• Part Number: 5631695
• Supersedes: 03568614, 03788832, 06239562, 06239563, 00215431, 6239561, 06239560, 5631694, 5631693, 5631692, 5631691, 5631690, 11604600
• Product Type: Washing machine drain pump
• Brand: Miele
• Diagram Position: Number 12
• Reference Diagram Model: W1511

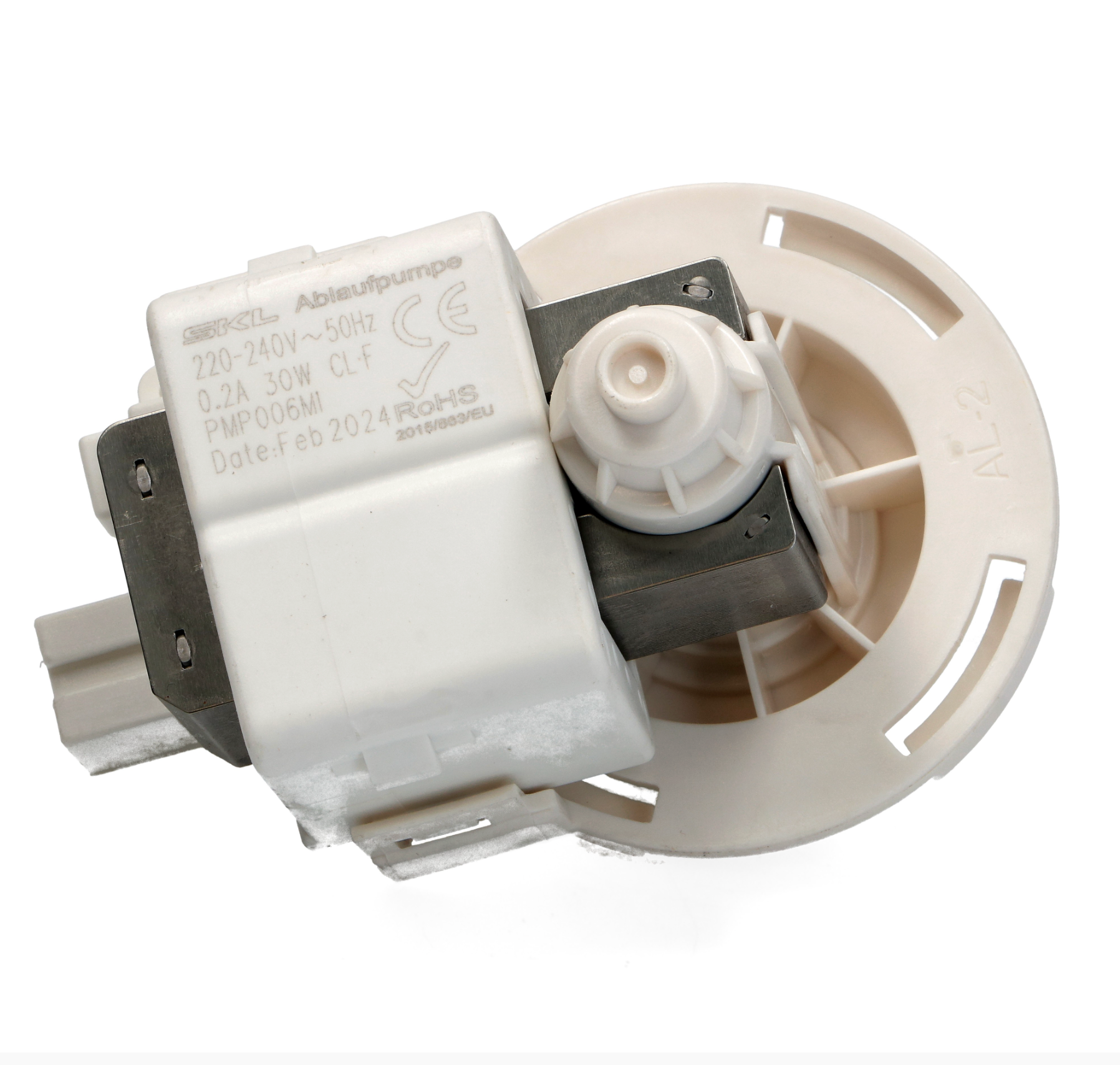

• Power Rating: 30W, 220–240V, 50Hz, 0.2A


Common Fault Symptoms

You may need to replace the drain pump if your washing machine is experiencing:

• Water remaining inside the drum after the cycle
• Washing machine not draining properly
• Drain or pump error codes
• Humming, grinding or rattling noises during draining
• Pump seized or impeller damaged
• Spin cycle not completing because the machine cannot drain

Why Replace the Drain Pump?

A faulty drain pump can leave water inside the drum, prevent the spin cycle from finishing, and reduce washing performance. Replacing the pump restores reliable drainage, protects other components from unnecessary strain, and keeps your Miele washing machine operating efficiently.

Models This Part Suits

W1511, W1512, W1513, W1514, W1515, W1522, W1523, W1534, W1611, W1612, W1613, W1614, W1615, W1616, W1622, W1623, W1634, W1662, W1664, W1712, W1713, W1714, W1715, W1716, W1723, W1724, W1726, W1730, W1733, W1734, W1735, W1740, W1743, W1744, W1747, W1749, W1754, W1762, W1764, W1779, W1780, W1960, and possibly more.
