Description

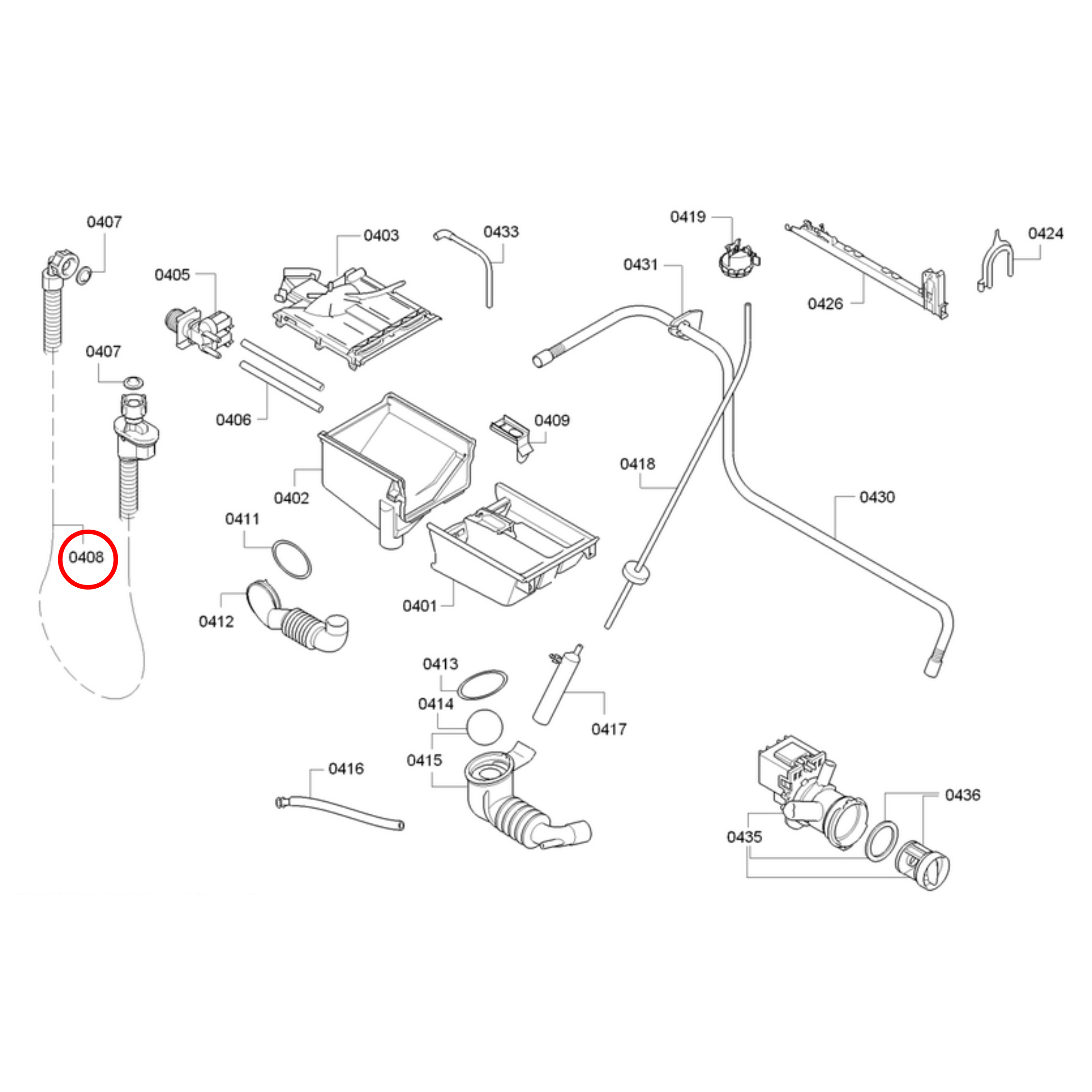

Part number 11007861 supersedes 11045139, 00363303, 11017352, 00460766 and appears as number 0408 on the diagram (see second last photo). The diagram is from model WAE22466AU/01.
Size:

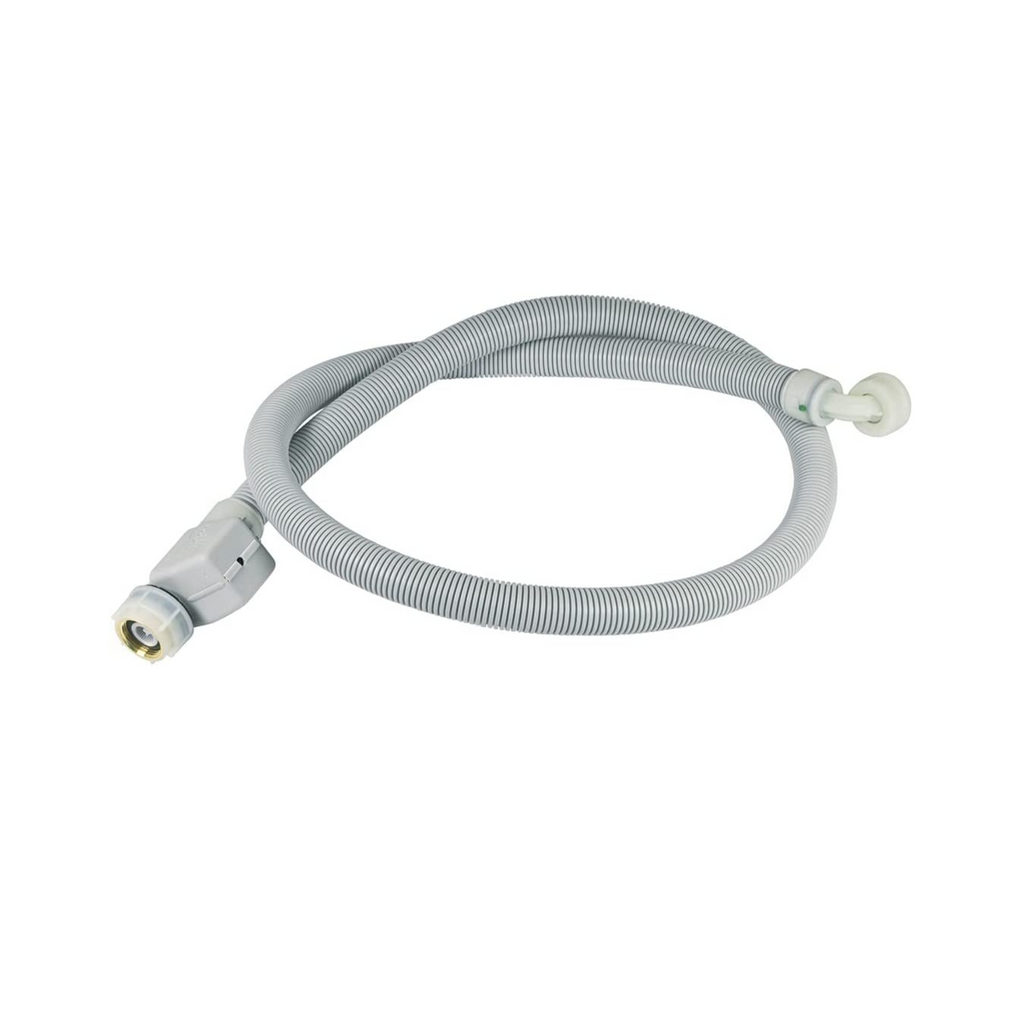

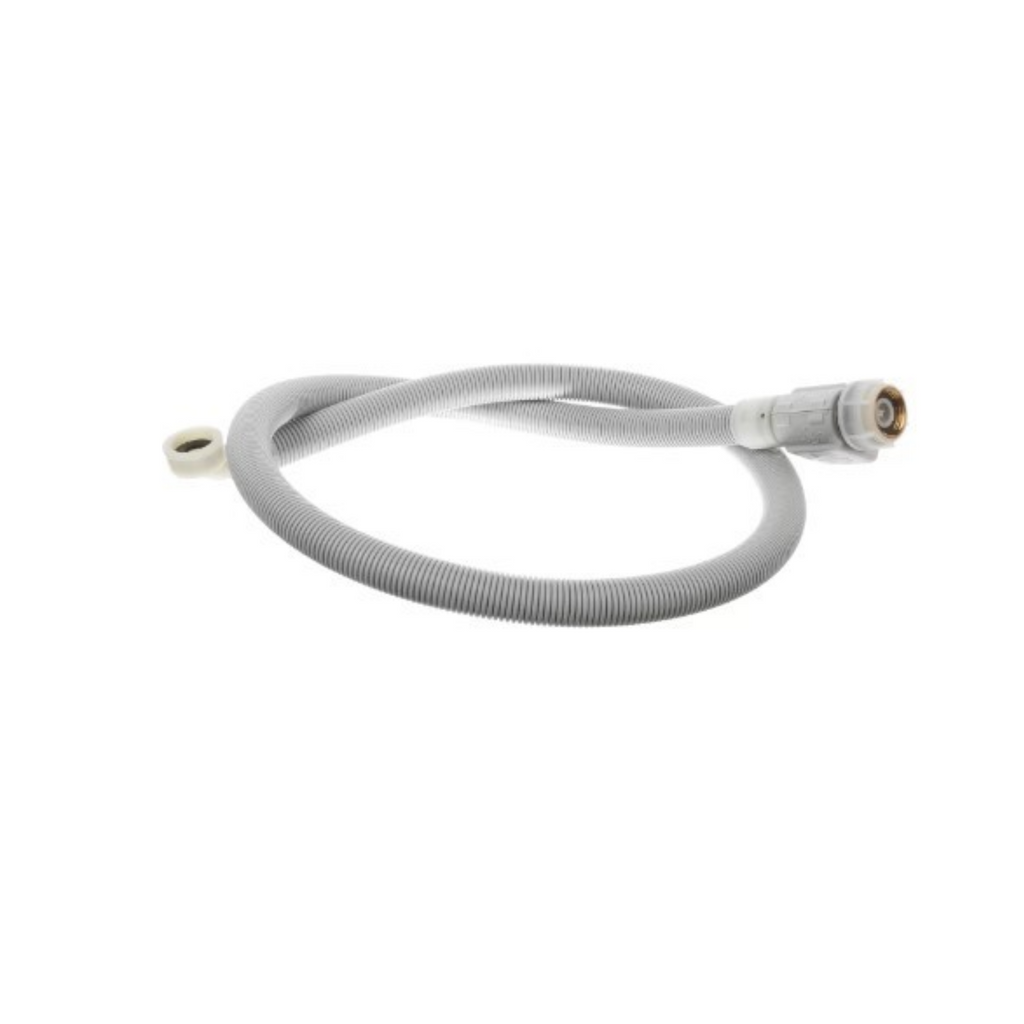

1.5 metre x 10 mm pressure hose with two 3/4" BSP fittings (actual thread diameter: 1").
Models this part suits:
WAE22466AU/01, WAE22466AU/32, WAE22466AU/35, WAE22466AU/36,
WAE22466AU/79, WAE22466AU/89, WAE22466AU/94,
WAN22120AU/01, WAN22120AU/02, WAN22120AU/03, WAN22120AU/04, WAN22120AU/06,
WAT24261AU/01, WAT24261AU/02, WAT24261AU/04, WAT24220AU/01,
WAW28460AU/01, WAW28460AU/07, WAW28460AU/09, WAW28460AU/11, WAW28460AU/12,
WAW28460AU/14, WAW28460AU/17, WAW28460AU/19, WAW28460AU/20, WAW28460AU/23,
WAW28620AU/12, WAW28620AU/17, WAW28620AU/20, WAW28620AU/23,
WAK24161AU/03, WAK24162AU/03, WAK24220AU/03,
WAP28482AU/01, WAW28420AU/14, WAW28420AU/17, WAW28420AU/20, WAW28420AU/23,
WVG28420AU/01, WVG28420AU/03,
WAU28490AU/02, WGG2449RAU/01, WAM22120AU/04, WAX32K41AU/01, WGA4U0AU/01, WAN24121AU/37,
WAK24160AU/01, WAK24160AU/02, WAK24160AU/03, WAK24160AU/04
, and possibly more.
Not sure if this hose fits your machine?
📧 Email us at sales@fastspares.com.au — our team will help you confirm before you order.
