077B3202 Danfoss Thermostat Refrigerator Freezer Thermostat 25T65

077B3202 Danfoss Thermostat Refrigerator Freezer Thermostat 25T65

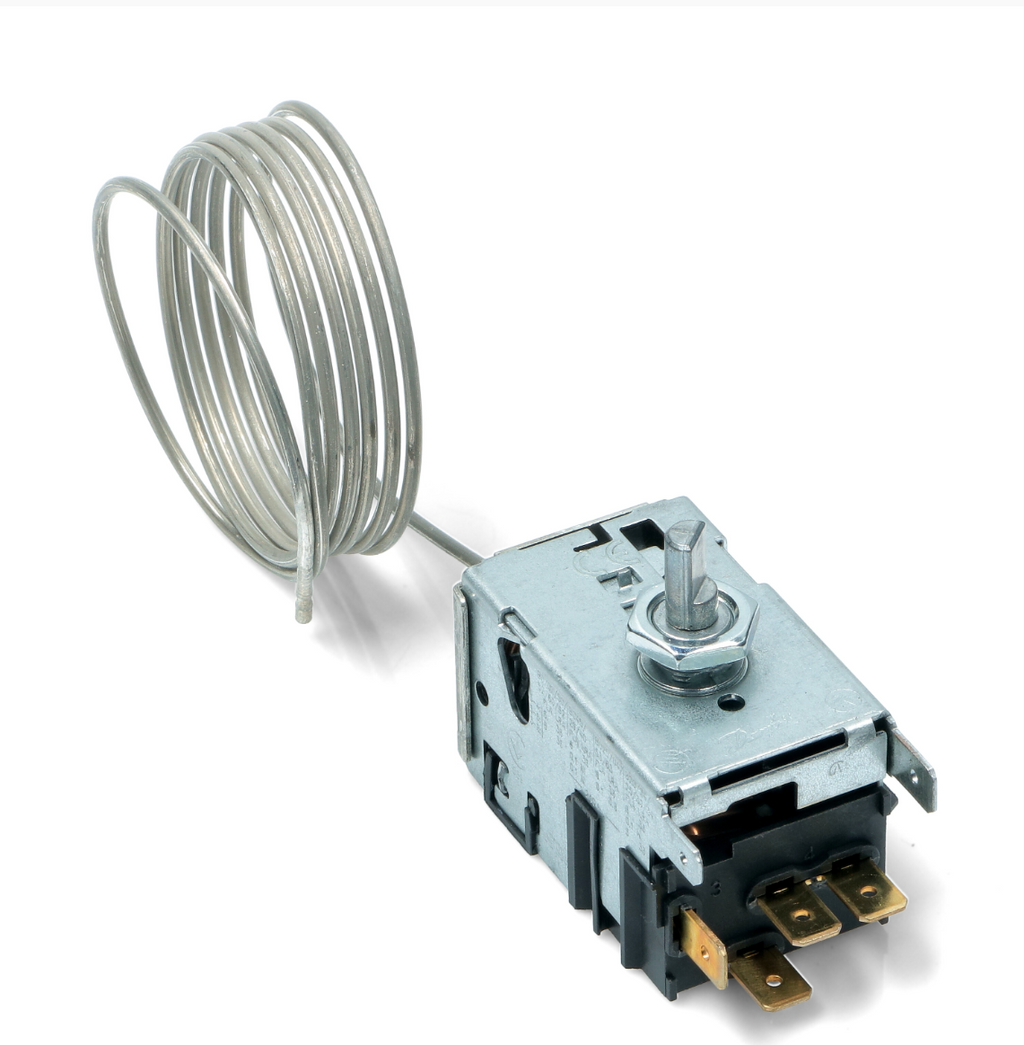

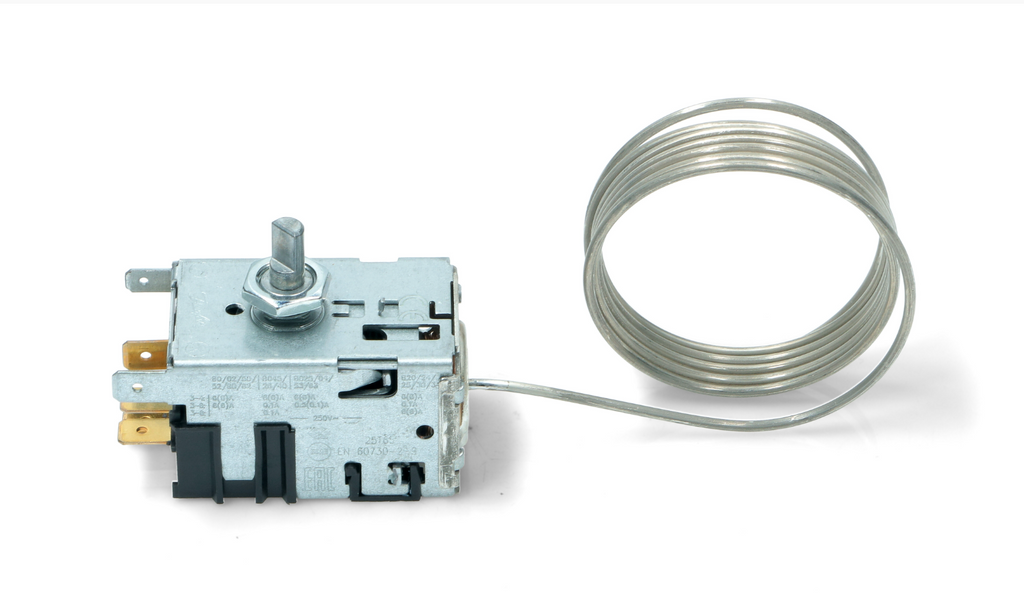

077B3202 Danfoss Thermostat Refrigerator Freezer Thermostat 25T65 is an original Danfoss mechanical thermostat designed for refrigerators and freezers with two compartments. This thermostat regulates internal temperature accurately, helping restore correct cooling performance when your appliance is running too warm, too cold, or not cycling correctly.

Manufactured in Europe, this thermostat features a 1200mm capillary tube and is suitable for appliances without 3 electrical contacts. It is commonly used in refrigerator/freezer combinations where precise temperature control is required.

Key Features

• Original Danfoss 25T65 thermostat

• Designed for refrigerators with two compartments

• Suitable for freezers without 3 contacts

• Accurate mechanical temperature regulation

• European manufactured quality

---

Part Details

• Brand: Danfoss

• Part Number: 077B3202


• Type: Refrigerator / Freezer Thermostat

• Control Type: Mechanical

---

Technical Specifications

• Capillary Length: 1200 mm

• Temperature Range:

  • Cold: −27°C

  • Hot: −9°C

• Connections: 6.3 mm / 4.8 mm terminals

• Dimensions: approx. 60 × 30 × 25 mm

• Contacts: For units without 3 contacts

• Manufacture Location: Europe

---

Suitable For

• Refrigerator–freezer combinations

• Two-compartment refrigeration appliances

• Applications requiring Danfoss 25T65 specification thermostat
