Description

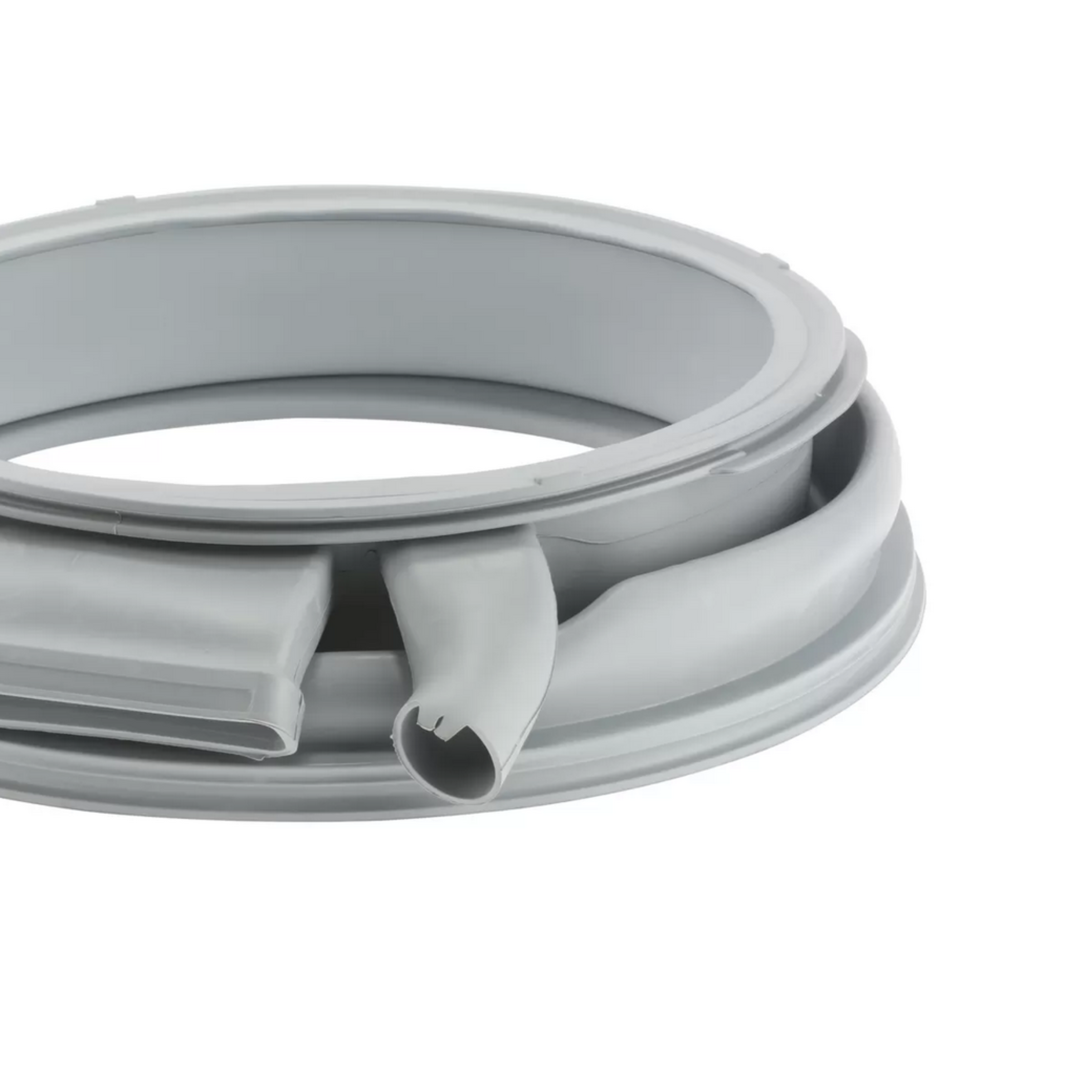

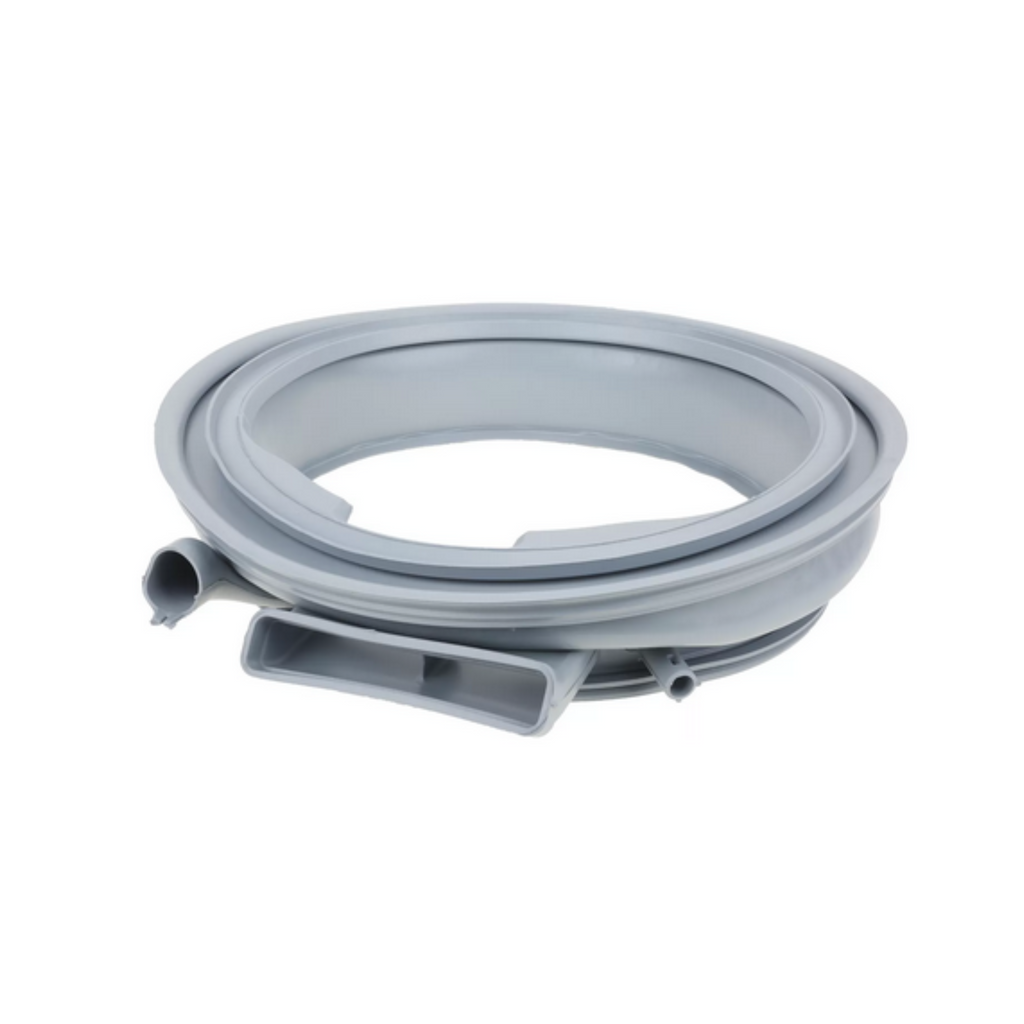

00684526 Bosch Front Load Washing Machine Door Gasket
00684526 Bosch Washer Dryer Door Seal Gasket With Nozzle
The 00684526 Bosch washer dryer door seal is a replacement rubber door gasket with nozzle designed for selected Bosch front load washer dryer models.
Common Fault Symptoms
- Water leaking from the washing machine door
- Water leaking underneath the appliance
- Torn or split rubber door gasket
- Damaged nozzle connection
- Door seal becoming loose or distorted
- Excessive mould or deterioration of the rubber
- Clothes becoming caught in a damaged seal
- Water collecting around the door opening
Product Specifications
- Part Number: 00684526
- Part Type: Door Seal / Door Gasket / Door Boot
- Design: Door Seal With Nozzle
- Application: Front Load Washer Dryer
- Diagram Position: 0326
- Suitable Brand: Bosch
Diagram Information

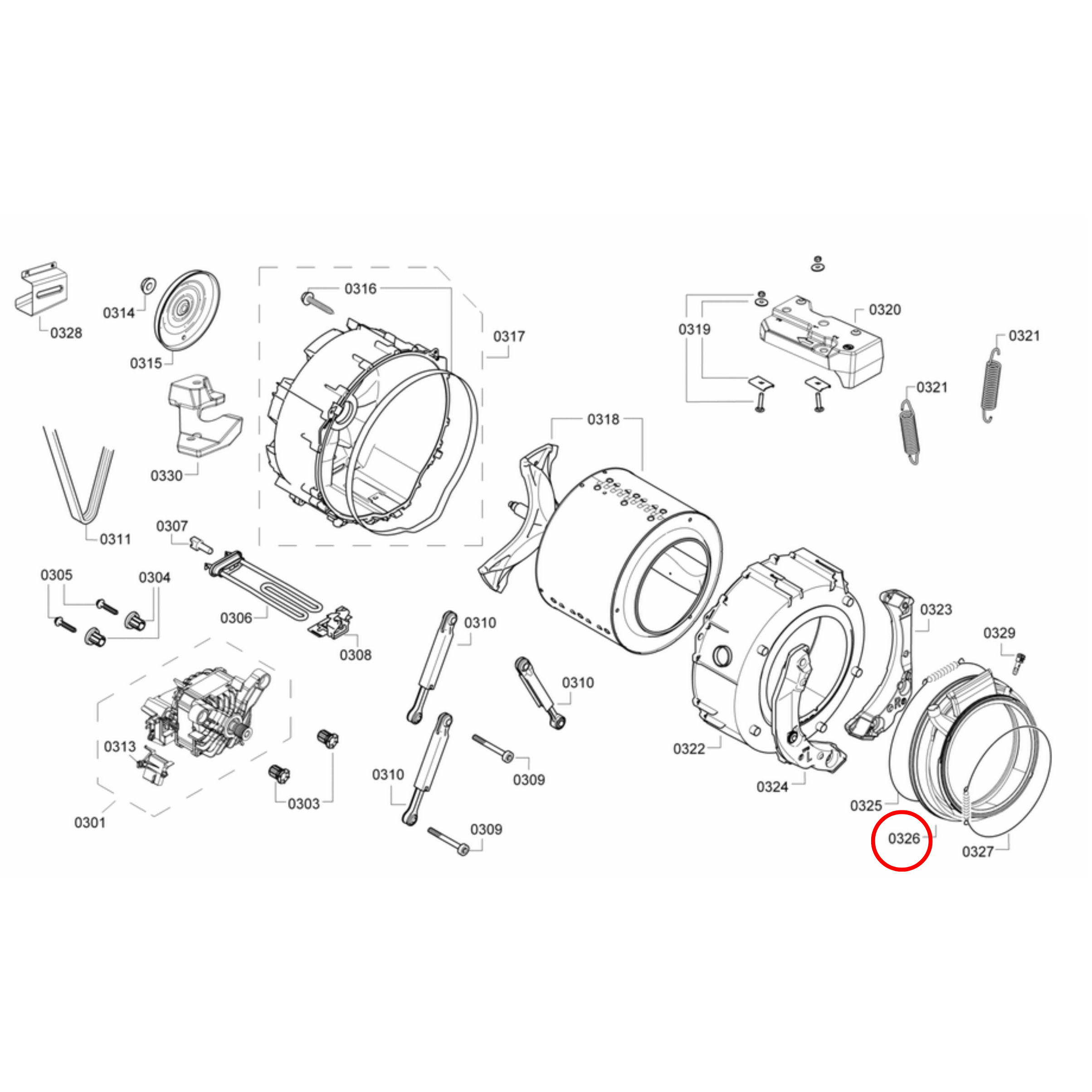

The 00684526 Bosch door gasket is shown as number 0326 on the exploded parts diagram for model WVH28490AU/01.
Please compare the part number and nozzle configuration carefully before ordering, as Bosch washing machines and washer dryers can use different door seals depending on the exact model and production version.
Compatible Models
This door seal suits selected Bosch washer dryer models including:
- WVH28490AU/01
- WVH28490AU/02
And possibly other compatible models using Bosch part number 00684526.
Why Replace the Door Seal?
The door gasket is one of the most important components for preventing water leaks from a front load washing machine or washer dryer.
Over time, the rubber can become:
- Torn
- Cracked
- Hardened
- Distorted
- Mould damaged
- Punctured by objects left in clothing pockets
Replacing a damaged 00684526 Bosch door seal can restore the watertight connection between the drum opening and appliance door.
